 Product Profile |
|
 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
 |
|
|
 Product name: 110 Connecting Hardwares
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
Keywords: Addison 110 Connecting Hardwares |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
 Product Picture |
|
|
|
| |
 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Introduction |
|
|
|
|
|
|
|

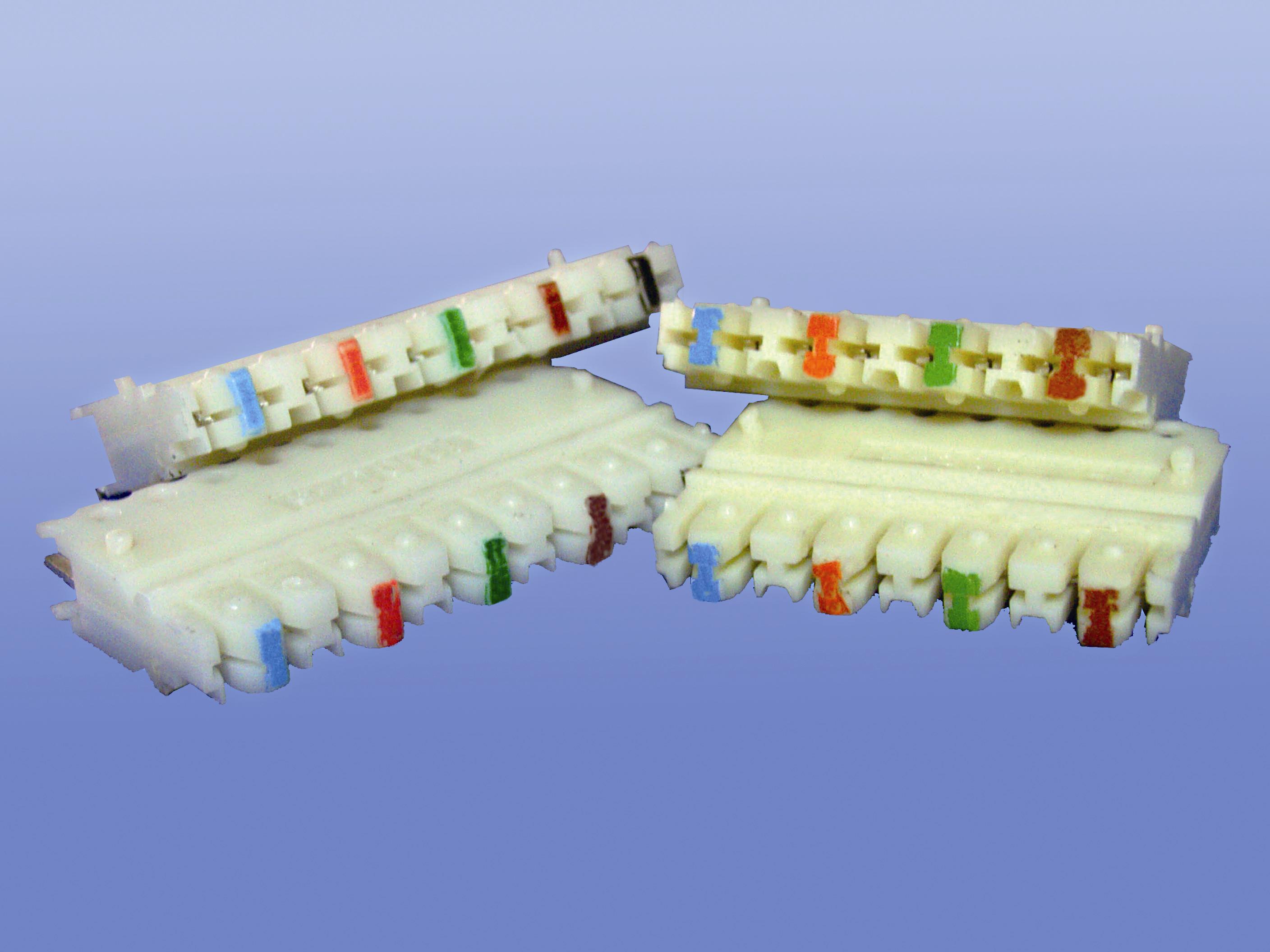

110 Connecting Hardwares |
|
|
|
|
|
|
|
|
|
Product Specification : |
|
|
|
|
|
|
|
|
|
4 and 5 pairs 110 connectors available.
Available in Cat 5e and Cat 6 options
Contacts are plated with 2 µ m silver.
Minimum insertion life cycles: 1000 cycles
Storage Temperature : -40 °C— +60 °C
Maximum Current Rating: 0.1 Amps
Maxium Direct Resistance Unbalance: 5 |
|
Product Highlights : |
|
|
|
|
|
|
|
|
|
Cat 5e and Cat 6 connectors provide optimum performance for NEXT in support of 10G Ethernet application.
Each panel comes with colored designation label and independent pair separator to ensure easy plug and play installation.
Can be marked with color designation label to identify the pair configuration on each connector.
Accepts both 110 and Krone type termination .
Connectors are stackable for space saving. |
|
|
|

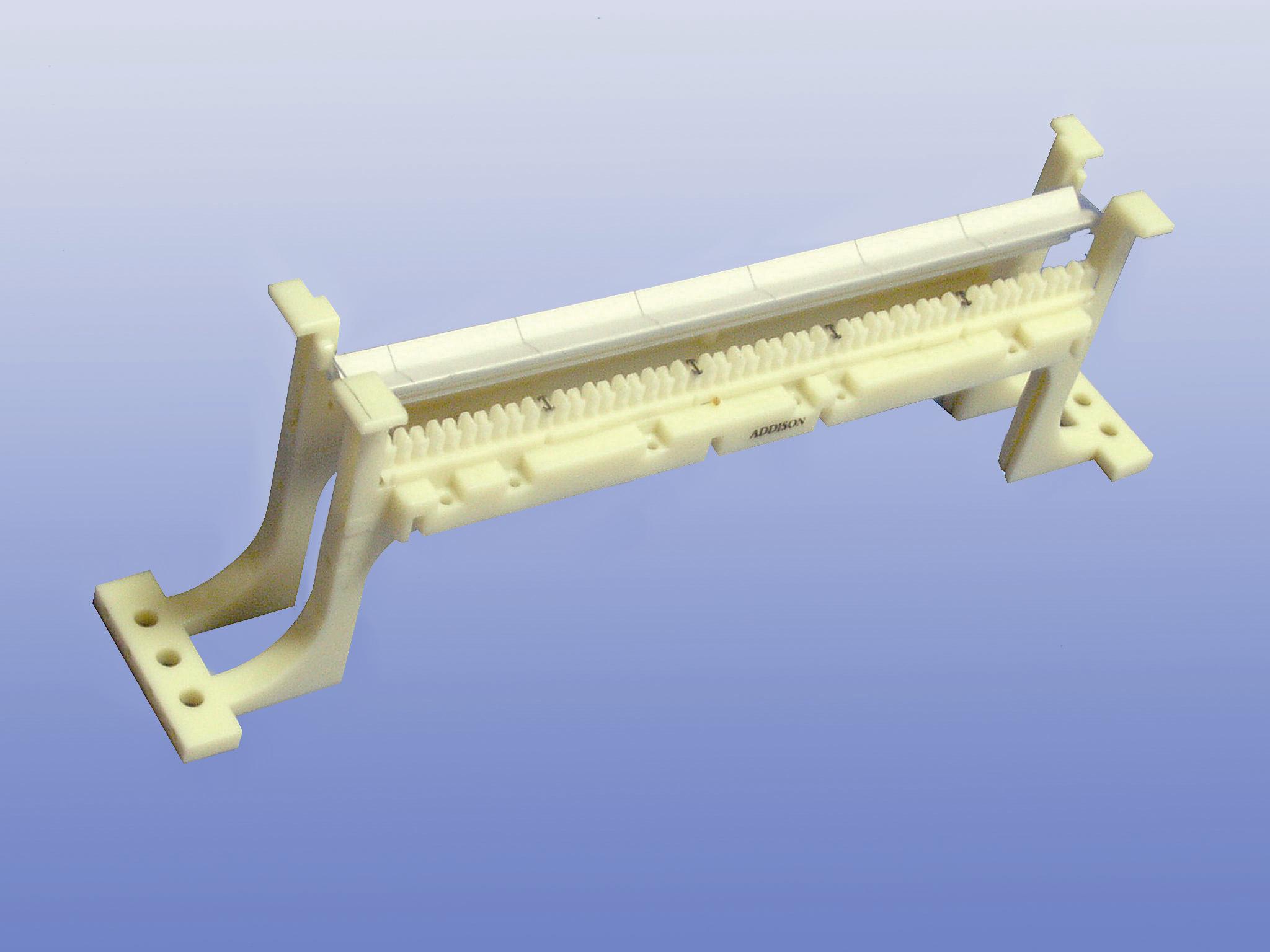

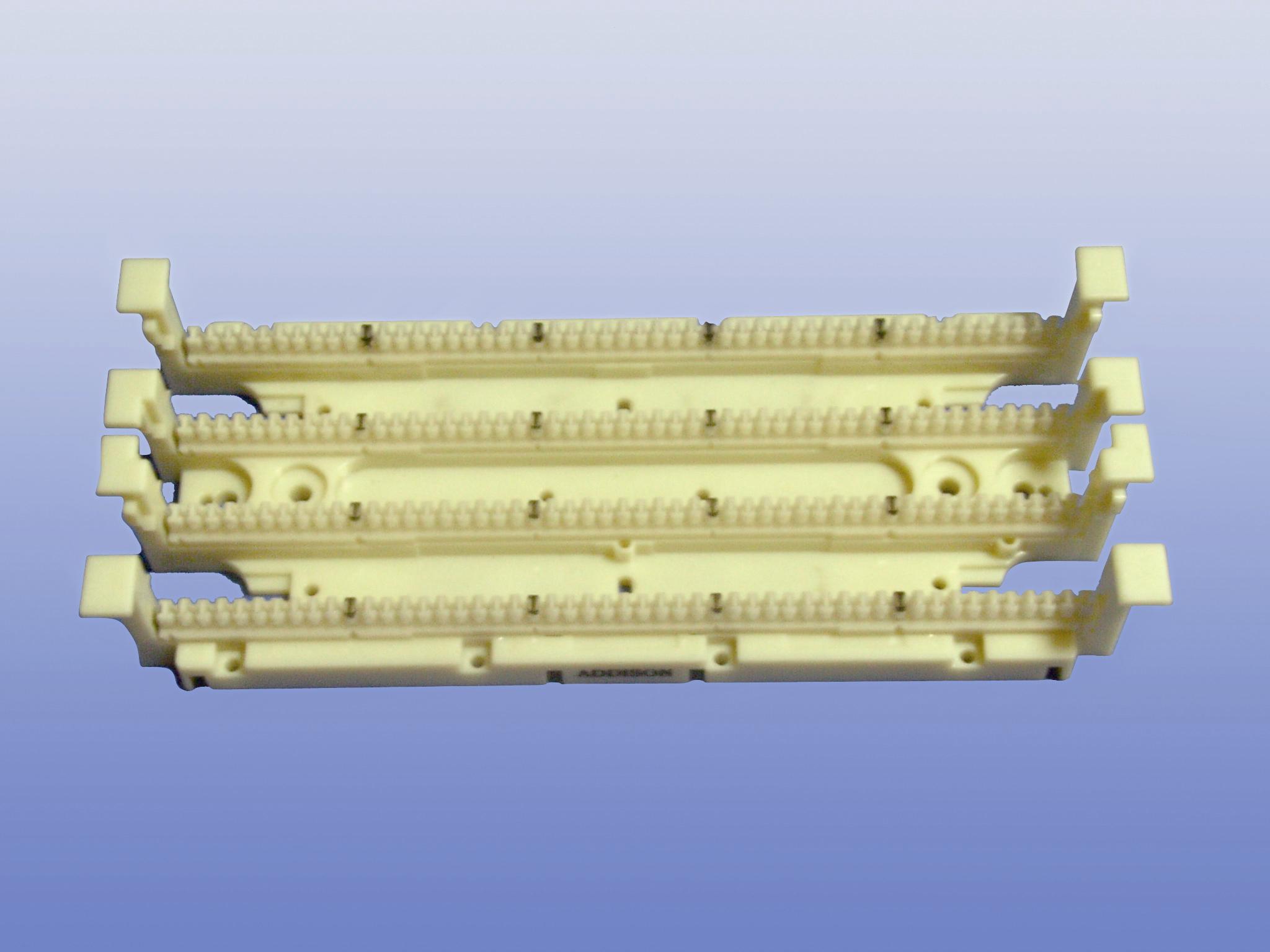

110 Patch Panels |
|
|
|
|
|
|
|
|
|
Product Specification : |
|
|
|
|
|
|
|
|
|
Being UL approved,the panel provide optimum performance, exceeding TIA/EIA 568-A & ISO/IEC 11801 requirement.
Available with/without Legs on the Block Base.
Available in 50, 100, 200, 300 pairs for selection.
Accepts 22-26 AWG ( 0.4-0.64mm ) solid or stranded cable.
Available in Cat 5e and Cat 6 option for selection .
Comes with wire management and cover for selection.
For mounting on wall or 19”equipment rack, stackable for space saving in larger cross connect installation.
Block base and wiring connectors can be offered separately for maxiumum installation flexibility.
Fit for connection between patch cords and consolidation points .
Connecting blocks are 110 IDC type Phosphor Bronze termination. |
|
|
110 Backplanes |
|
|
|
|
|
|
|
|
|
◎ Basic Features:
☆ Made of fine steel, not easily damaged by scratching.
☆ Designed for 110 system, suitable for data patch panels & cable management panels.
☆ 1U backplane fits for fixing the cable management panels in the cabinet; 2U backplane fits for fixing patch panels in the cabinet.
◎ Product Highlights:
☆ Light & durable.
☆ Specially designed for cable routing.
◎ Ordering Information:
Part No. |
Description |
AD-110C5E-WBP-200-2U |
CAT5e 200 pairs 110 Wiring Block w/o Legs (,Panel Type in 2U) |
AD-110C5E-WBP-100-1U |
CAT5e 100 pairs 110 Wiring Block w/o Legs (Panel Type in 1U) |
AD-110C5E-WB-300 |
CAT5e 300 pairs 110 Wiring Block w/o Legs |
AD-110C5E-WB-100 |
CAT5e 100 pairs 110 Wiring Block w/o Legs |
AD-110C5E-WB-50 |
CAT5e 50 pairs 110 Wiring Block w/o Legs |
AD-110C5E-WB-300L |
CAT5e 300 pairs 110 Wiring Block with Legs |
AD-110C5E-WB-100L |
CAT5e 100 pairs 110 Wiring Block with Legs |
AD-110C5E-WB-50L |
CAT5e 50 pairs 110 Wiring Block with Legs |
AD-110C5E-C5 |
CAT5e 5 pair Wiring Connector |
AD-110C5E-C4 |
CAT5e 4 pair Wiring Connector |
AD-110C6-WB-32 |
CAT6 32 pairs 110 Wiring Block w/o Legs |
AD-110C6-WB-48 |
CAT6 48 pairs110 Wiring Block w/o Legs |
AD-110C6-WB-64 |
CAT6 64 pairs110 Wiring Block w/o Legs |
AD-110C6-WB-96 |
CAT6 96 pairs 110 Wiring Block w/o Legs |
AD-110C6-WB-32L |
CAT6 32 pairs 110 Wiring Block with Legs |
AD-110C6-WB-48L |
CAT6 48 pairs 110 Wiring Block with Legs |
AD-110C6-WB-64L |
CAT6 64 pairs 110 Wiring Block with Legs |
AD-110C6-WB-96L |
CAT6 96 pairs 110 Wiring Block with Legs |
AD-110C6-C4 |
CAT6 4 pair Wiring Connector |
AD-110LH |
Designation Label holder |
AD-110DL |
Designation Label |
AD-110-BB-1U |
1U Backplane for Patch Panel |
AD-110-BB-2U |
2U Backplane for Patch Panel |
AD-110BB-1U |
1U for Backplane for Cable Management Panel |
AD-110BB-2U |
2U for Backplane for Cable Management Panel |

|
|
Product Highlights |
|
|
|
|
|
|
|
|
|
Space saving, user friendly panel design save much installation time.
Working in harmony with 110 jacks and patch panels, the Cat5e system can be component and channel tested with significant margin up to 155 Mhz and Cat 6 products can be component and channel tested with significant margin up to 250 Mhz.
The conductors on the 110 patch panel can be easily stripped during termination to save installation time.
Comes with wire management bar to secure the cables in place for ease of termination. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
 |
|
 |
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ordering Information |
|
|
|
|
|
|
|
|
|
|
|
Part No. |
Description |
AD-110C5E-WBP-200-2U |
CAT5E,200 pairs 110 wiring block w/o legs,panel type in 2U |
AD-110C5E-WBP-100-1U |
CAT5E,100 pairs 110 wiring block w/o legs,panel type in 1U |
AD-110C5E-WB-300 |
CAT5E,300 pairs 110 wiring block w/o legs |
AD-110C5E-WB-100 |
CAT5E,100 pairs 110 wiring block w/o legs |
AD-110C5E-WB-50 |
CAT5E,50 pairs 110 wiring block w/o legs |
AD-110C5E-WB-300L |
CAT5E,300 pairs 110 wiring block with legs |
AD-110C5E-WB-100L |
CAT5E,100 pairs 110 wiring block with legs |
AD-110C5E-WB-50L |
CAT5E,50 pairs 110 wiring block with legs |
AD-110C5E-C5 |
CAT5E,5 pair wiring connector |
AD-110C5E-C4 |
CAT5E,4 pair wiring connector |
| AD-110C6-WB-96 |
CAT6,96 pairs 110 wiring block w/o legs |
| AD-110C6-WB-48 |
CAT6,48 pairs 110 wiring block w/o legs |
| AD-110C6-WB-96L |
CAT6,96 pairs 110 wiring block with legs |
| AD-110C6-WB-48L |
CAT6,48 pairs 110 wiring block with legs |
AD-110C6-C4 |
CAT5E,4 pair wiring connector |
AD-110WM |
110 Wire management w/o legs |
AD-110-WM-L |
110 Wire management with legs |
AD-110-WM-1U |
110 Wire management w/o legs,panel type in 1U |
AD-110LH |
Designation label holder |
AD-110DL |
Designation label |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
