Product name: Cable Management Panels

Keywords: addison cables mannagement panels


    Product Picture

  1u cable management panel 2u cable management panel

Product Introduction
Cable Management Panels


Ordering Information for Cable Management Panel

Cable Management Panels

◎ Basic Features:
☆ Manage cable at the front and rear of racks for managing cable installations in an extremely neat appearance.
☆ Maintain cable bending radius.
☆ Available in both 1U and 2U options.
☆ Fit for data patch panels & 110 patch panels .1u cable management panel
☆ Metal and plastic type for selection.
☆ Normal types & duct types for selection.
☆ Large capacity duct for managing cables quickly.
☆ Mounting to standard rackmount 19" racks.
☆ Manage patch cords, providing appropriate route for the horizontal or backbone wiring and patch cords.
   Product Highlights:
☆ Each cable management panel can work independently, not interfering with other cable management panels.
☆ Provide cable management at the rear of rack, suitable for different cable installation requirement. Cables can
be managed quickly at the rear part, thus providing effective cable management in a compact environment.
☆ Metal design enhances the product durability.
☆ The special routing design of the panel can maintain the bending radius of the cables effectively.
Ordering Information:


Part No.

Description

Dimensions

AD-RP-M-FR-1U

1U Cable Management Panel (Metal Type) with rings at the front and rear

1.8"×19"

AD-RP-M-F-1U

1U Cable Management Panel (Metal Type) with rings at the front

1.8"×19"

AD-RP-M-FR-2U

2U Cable Management Panel (Metal Type) with rings at the front and rear

3.6"×19"

AD-RP-M-F-2U

2U Cable Management Panel (Metal Type) with rings at the front

3.6"×19"

AD-DP-M-FR-1U

1U Duct Panel (Metal Type)-with ducts at the front and rear

1.8"×19"

AD-DP-M-F-1U

1U Duct Panel (Metal Type)- with 1 duct at the front

1.8"×19"

AD-DP-M-FR-2U

2U Duct Panel (Metal Type)-with ducts at the front and rear

3.6"×19"

AD-DP-M-F-2U

2U Duct Panel (Metal Type)-with 1 duct at the front

3.6"×19"

AD-110WM

110 Cable Management Panel without legs

3.6"×19"

AD-110-WM-L

110 Cable Management Panel with legs

3.6"×19"

AD-110-WM-1U

1U 110 Cable Management Panel without legs

1.8"×19"

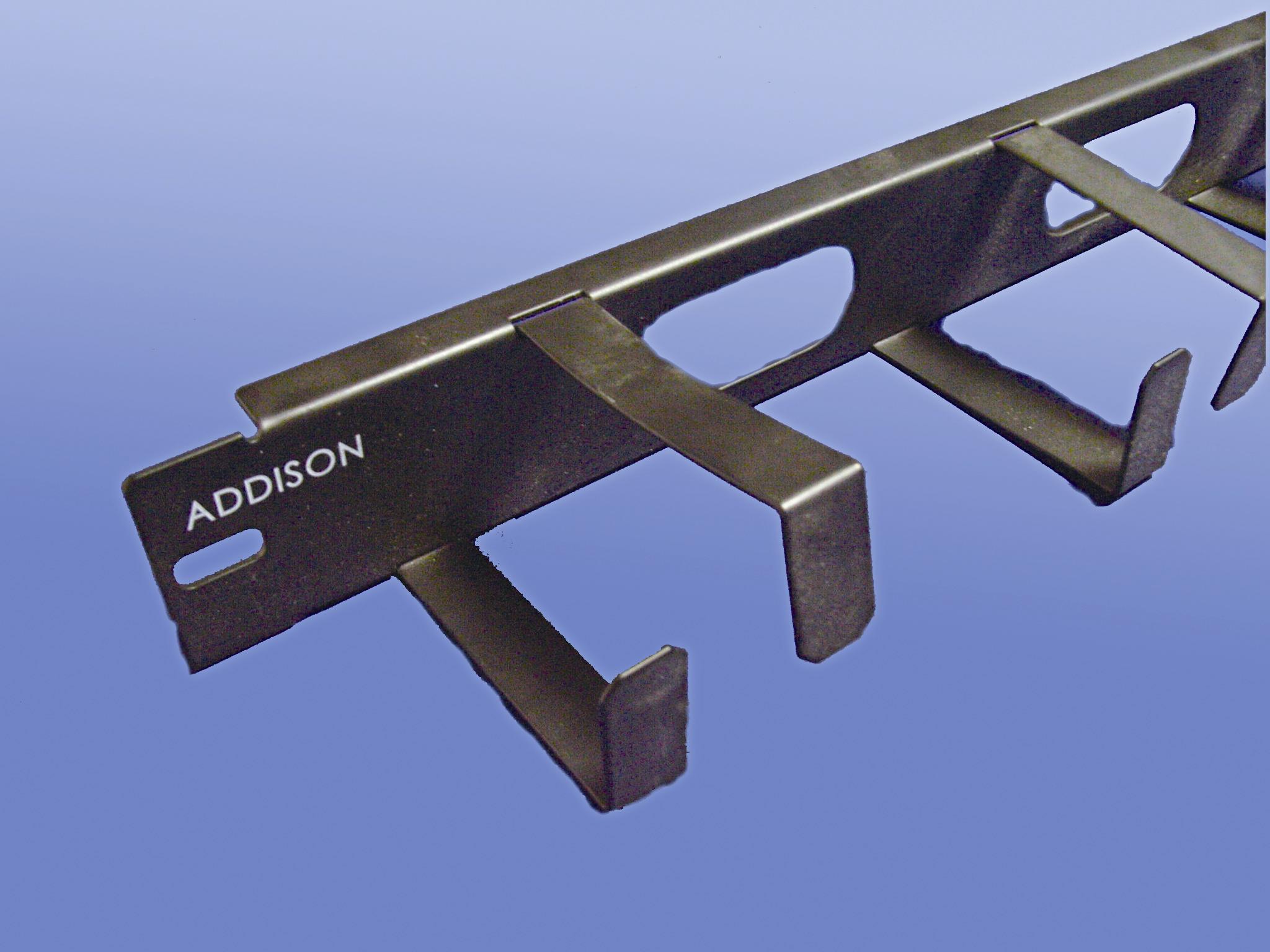

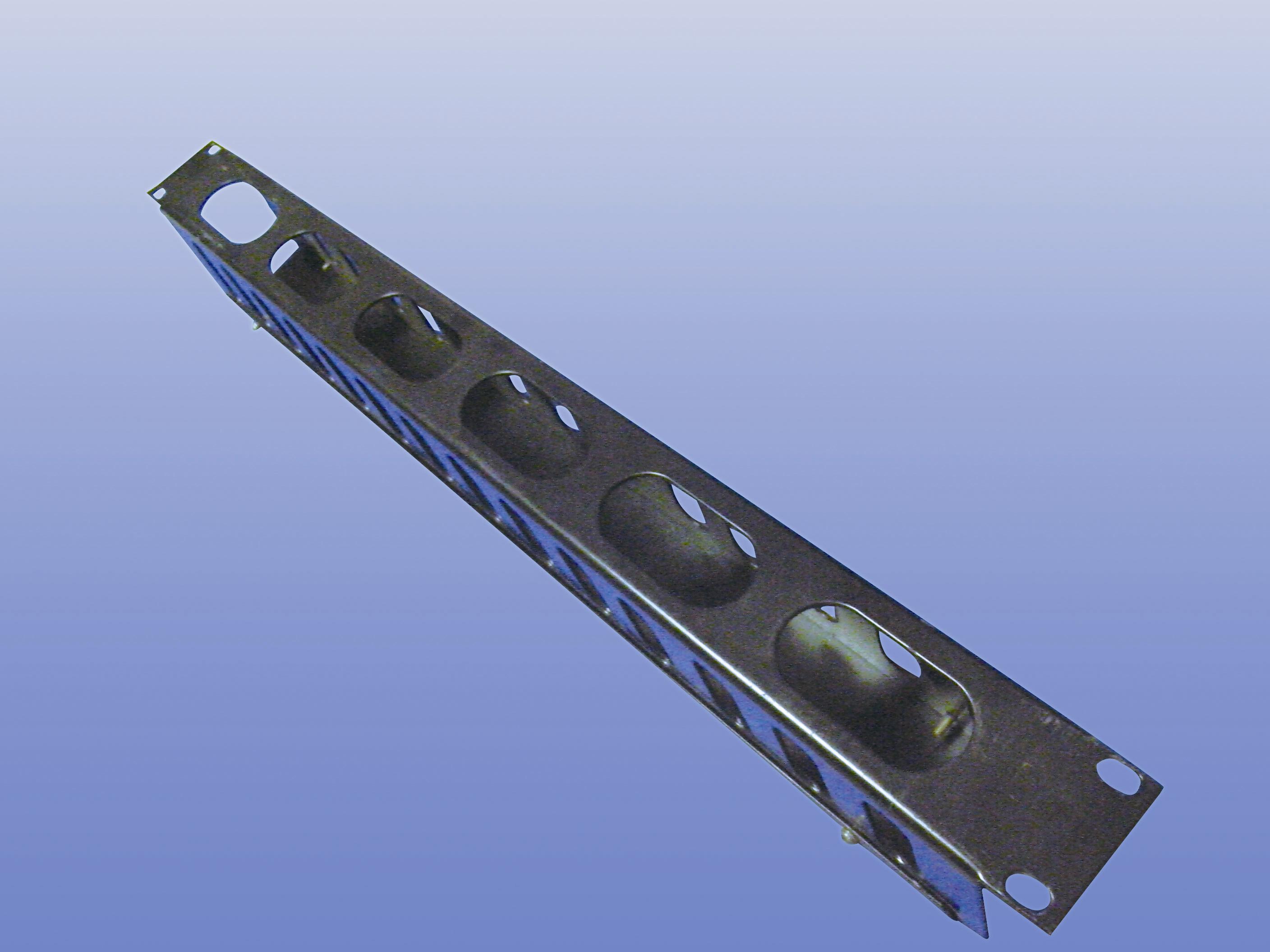

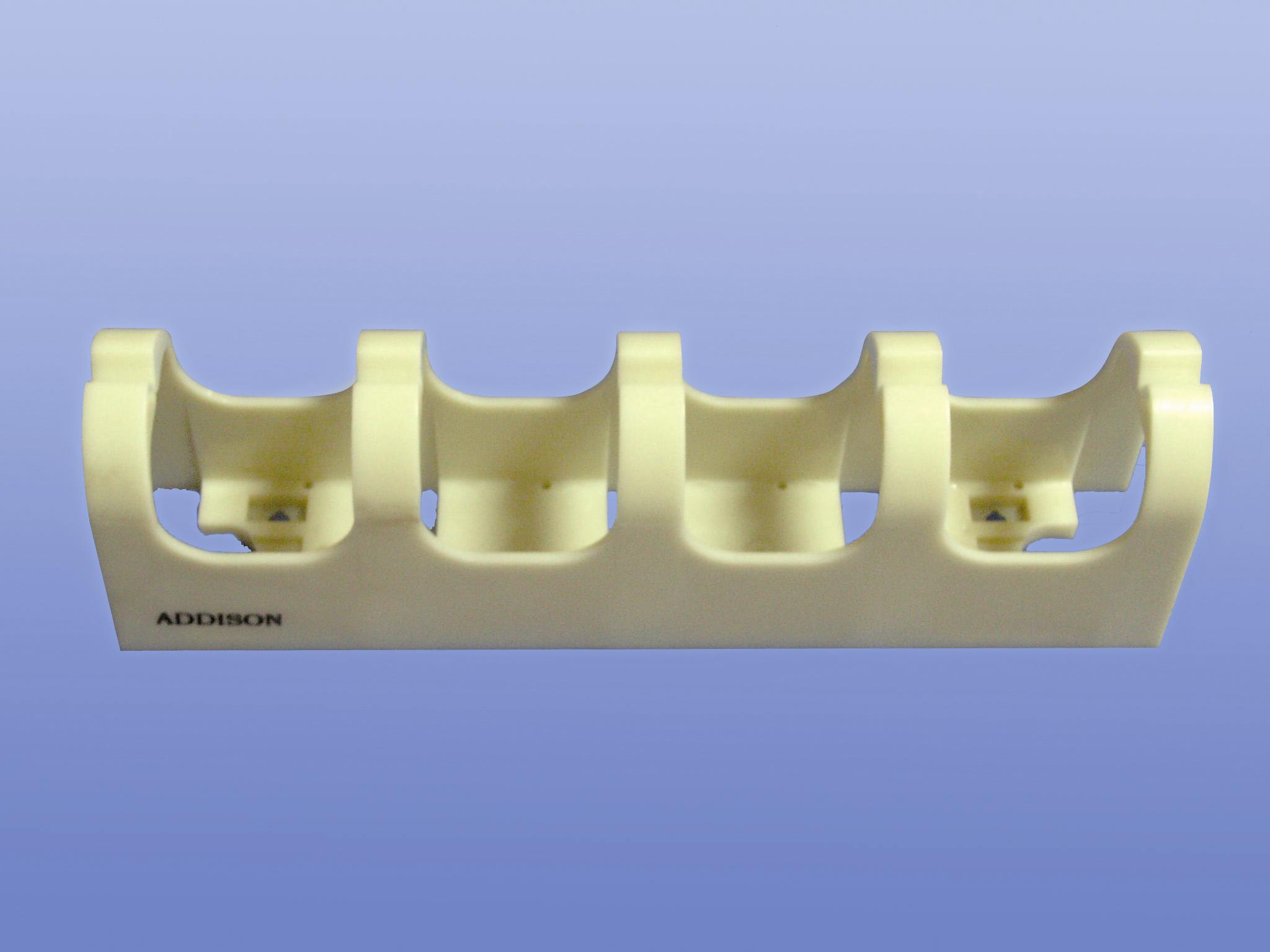

1U Cable Management Panel       Duct Cable Management Panel      110 system Cable Management Panel
