¡¡Product Profile


Product name: Catgory 5 Multipair Cables

  Keywords: Cat5e
b

  Product Introduction

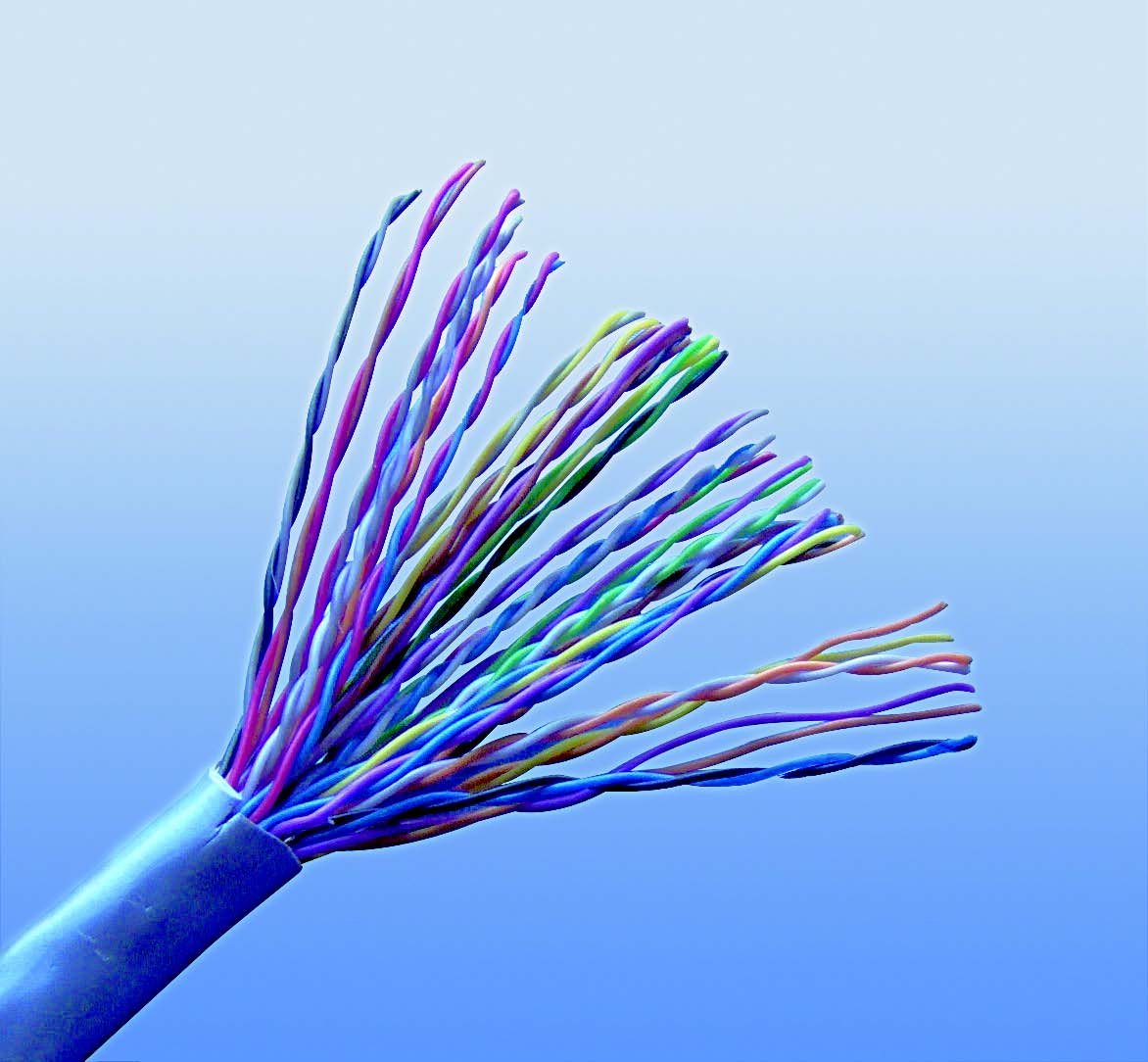

Category 5 Multipair Cables

¡ò Applications:
10Base-T, 100Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155Mbps ATM, 622Mbps ATM


¡ò Standards:
ISO/IEC 11801£¬ANSI/TIA/EIA-568-B


¡ò Product Construction Matrix:





U/UTP

F/UTP

SF/UTP

Conductor

Material

Solid Plain Copper

Solid Plain Copper

Solid Plain Copper

Conposition(number/mm)

1/0.5mm

1/0.5mm

1/0.5mm

Gauge

24AWG

24AWG

24AWG

Insulation

Material

PE

PE

PE

Diameter

0.86

0.86

0.86

Screen

Material

Nil

Overall Aluminum Tape Screen

Overall Aluminum Tape Screen & Copper Wire Braid

Drain Wire

Material

Nil

1/0.5mm

1/0.5mm

Assembly

No of Pairs

25/50/100

25/50/100

25/50/100

Outer Sheath

Material

PE/PVC/LSF/LSZH

PE/PVC/LSF/LSZH

PE/PVC/LSF/LSZH

Remark: PE-Polyethylene; PVC-Polyvinyl Chloride; LSF-Low Smoke & Fume; LSZH-Low Smoke Zero Halogen; LSFROH-Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C); PVC can be classified as CMX, CM, CMR and CMP


¡ò Working Frequency:
1-100MHz


¡ò Product Certification:
E222756


¡ò Technical Parameters:
¡î Characteristic Impedance: 100¡À15¦¸
¡î Nominal Velocity of Propagation(NVP): 69%
¡î Maximum DC Resistance: 9.38¦¸/100m
¡î Maximum Mutual Capacitance: 5.6 nF/100m
¡î Maximum Capacitance Unbalance: 330 pF/100m
¡î Maximum Resistance Unbalance: 5%
¡î Maximum Propagation Delay Skew: 30 ns/100m
¡î Maximum Propagation Delay: 536 ns/100m@100 MHz
¡î Minimum Bending radius: 10 x Overall Diameter
¡î Voltage Rating: 60V rms
¡î Maximum Pulling load: 80N
¡î Working Temperature:          -20 ¡æ ~ +60¡æ
¡î Storage Temperature: -5¡æ ~ + 50¡æ
¡î Flame Retardancy: UL 1581 (CM Jacket); UL 1666 (CMR Jacket); UL 910 (CMP Jacket); IEC 60332-1 (FRPVC & LSZH Jacket); IEC 60332-1 & IEC 60332-3C (LSFROH Jacket)
¡ò Product Highlights:
¡î Provide excellent bandwidth beyond 100 MHz.
¡î Designed for use in data and voice backbone application.
¡î Meet the strict flame retardancy and environmental requirements in Europe and US.
¡î Easy identifiable color code for ease of installation.

¡ò Transmission Properties:


FREQ (MHz)

NEXT(dB/100m)
Min.Value/ Typical Value/Standard Value

IL(dB/100m)

SRL (dB)
Min.Value/ Typical Value/Standard Value

1

64.0/71.0/62.0

2

24.5/26.0/23.0

4

55.0/62.0/53.0

4

24.5/26.0/23.0

8

49.5/57.0/48.0

5.7

24.5/26.0/23.0

10

49.0/56.0/47.0

6.4

24.5/26.0/23.0

16

44.9/52.0/44.0

8.2

24.5/26.0/23.0

20

42.5/48.0/42.0

9.2

24.5/26.0/23.0

25

42.0/48.0/41.0

10.3

24.5/26.0/23.0

31.25

40.6/48.0/39.0

11.6

22.5/24.0/21.0

62.5

36.1/43.0/35.0

16.9

19.5/22.0/18.0

100

34.0/40.0/32.0

21.8

17.5/20.0/16.0

¡ò Ordering Information


Model

Product Description

AD-BC-CAT5UTP25PCM24

U/UTP Cat5 25Pairs, CM Grade (Non-Plenum)

AD-BC-CAT5UTP50PCM24

U/UTP Cat5 50Pairs, CM Grade (Non-Plenum)

AD-BC-CAT5UTP100PCM24

U/UTP Cat5 100Pairs, CM Grade (Non-Plenum)

AD-BC-CAT5UTP25PLH24

U/UTP Cat5 25Pairs, LSZH Grade (IEC60332-1)

AD-BC-CAT5UTP50PLH24

U/UTP Cat5 50Pairs, LSZH Grade (IEC60332-1)

AD-BC-CAT5UTP100PLH24

U/UTP Cat5 100Pairs, LSZH Grade (IEC60332-1)

AD-BC-CAT5UTP25PPE24

Outdoor U/UTP Cat5 25Pairs (Water Blocking /UV Resistant)

AD-BC-CAT5UTP50PPE24

Outdoor U/UTP Cat5 50Pairs (Water Blocking /UV Resistant)

AD-BC-CAT5UTP100PPE24

Outdoor U/UTP Cat5 100Pairs (Water Blocking /UV Resistant)

AD-BC-CAT5FTP25PCM24

F/UTP Cat5 25Pairs, CM Grade (Non-Plenum)

AD-BC-CAT5FTP50PCM24

F/UTP Cat5 50Pairs, CM Grade (Non-Plenum)

AD-BC-CAT5FTP100PCM24

F/UTP Cat5 100Pairs, CM Grade (Non-Plenum)

AD-BC-CAT5FTP25PLH24

F/UTP Cat5 25Pairs, LSZH Grade (IEC60332-1)

AD-BC-CAT5FTP50PLH24

F/UTP Cat5 50Pairs, LSZH Grade (IEC60332-1)

AD-BC-CAT5FTP100PLH24

F/UTP Cat5 100Pairs, LSZH Grade (IEC60332-1)

AD-BC-CAT5FTP25PPE24

Outdoor F/UTP Cat5 25Pairs (Water Blocking /UV Resistant)

AD-BC-CAT5FTP50PPE24

Outdoor F/UTP Cat5 50Pairs (Water Blocking /UV Resistant)

AD-BC-CAT5FTP100PPE24

Outdoor F/UTP Cat5 100Pairs (Water Blocking /UV Resistant)
