◎ Applications:
10Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155MbpsATM, 622 Mbps ATM, 1000Base-T, 10GBase-T
◎ Standards:
ISO / IEC 11801, EN50173, TIA / EIA 568-B

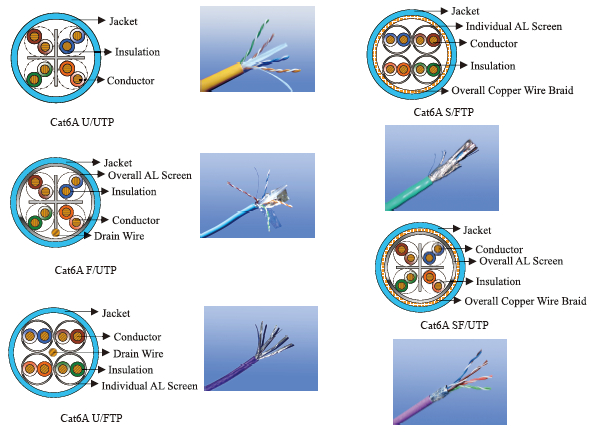

◎ Product Construction Matrix:
|
U/UTP |
F/UTP |
U/FTP |
SF/UTP |
S/FTP |
Conductor |
23AWG Solid Plain Copper |
23AWG Solid Plain Copper |
23AWG Solid Plain Copper |
23AWG Solid Plain Copper |
23AWG Solid Plain Copper |
Insulation |
PE |
PE |
PE |
PE |
PE |
Screen |
Nil |
Overall Aluminum Tape Screen |
Individual Aluminum Tape Screen |
Overall Aluminum Tape Screen & Copper Wire Braid |
Individual Aluminum Tape Screen & Copper Wire Braid |
Drain Wire |
Nil |
1/0.5 mm |
1/0.5 mm |
Nil |
Nil |
Jacket |
PE/PVC/LSF/LSZH/LFLSFROH |
PE/PVC/LSF/LSZH |
PE/PVC/LSF/LSZH/LSFROH |
Remark: PE- Polyethylene; PVC- Polyvinyl Chloride; LSF- Low Smoke & Fume; LSZH- Low Smoke Zero Halogen; LSFROH-Low Smoke Flame
Retardant Zero Halogen (to IEC60332-3C); PVC can be classified as CMX, CM, CMR and CMP
◎ Working Frequency:
1-500MHz
◎ Technical Parameters:
☆ Characteristic Impedance: 100±15Ω (1-250MHz); 100±22Ω (100-500Mhz)
☆ Nominal Velocity of Propagation (NVP): CMX, CM, CMR, LSZH 69%; CMP 72%
☆ Maximum Mutual Capacitance: 5.6nF/100m
☆ Maximum Capacitance Unbalance: 330pF/100m
☆ Maximum DC Resistance: 7.5Ω/100m
☆ Maximum Resistance Unbalance: 3%
☆ Maximum Propagation Delay Skew: 30ns/100m (1-125MHz)
☆ Maximum Propagation Delay: 536 ns/100m @ 100MHz
☆ Minimum Bending radius: 10 x Overall Diameter
☆ Maximum Pulling load: 80N
☆ Working Temperature: -20℃ ~+ 60℃
☆ Storage Temperature: -5℃ ~ +50℃
☆ Flame Retardancy:
UL 1581 (CM Jacket); UL 1666 (CMR Jacket );
UL 910 (CMP Jacket); IEC 60332-1 (FRPVC & LSZH Jacket);
IEC 60332-1 & IEC 60332-3C (LSFROH Jacket)
◎ Product Certification:
 E222756
◎ Product Categories :
Construction |
Conductor Diameter (mm) |
Diameter Over Insulation (mm) |
Pairs |
Screen |
Overall Diameter (mm) |
Jacket |
U/UTP |
0.57/0.58 |
1.02 |
4 |
Nil |
8.5 |
PVC/LSZH |
U/UTP |
0.57/0.58 |
1.02 |
4 |
Nil |
8.9 |
LSFROH |
U/UTP |
0.57/0.58 |
1.02 |
4 |
Nil |
8.7 |
PE |
F/UTP |
0.57/0.58 |
1.02 |
4 |
Overall Aluminum Tape Screen |
6.3 |
PVC/LSZH |
F/UTP |
0.57/0.58 |
1.02 |
4 |
Overall Aluminum Tape Screen |
6.5 |
PE |
U/FTP |
0.57/0.58 |
1.02 |
4 |
Individual Aluminum Tape Screen |
7.5 |
PVC/LSZH |
SF/UTP |
0.57/0.58 |
1.02 |
4 |
Overall Aluminum Tape Screen & Copper Wire Braid |
6.6 |
PVC/LSZH |
SF/UTP |
0.57/0.58 |
1.02 |
4 |
Overall Aluminum Tape Screen & Copper Wire Braid |
7.2 |
LSFROH |
S/FTP |
0.57/0.58 |
1.02 |
4 |
Individual Aluminum Tape Screen & Overall Copper Wire Braid |
8.0 |
PVC/LSZH |
S/FTP |
0.57/0.58 |
1.02 |
4 |
Individual Aluminum Tape Screen & Overall Copper Wire Braid |
8.4 |
LSFROH |
◎ Product Highlights:
☆ Provide excellent NEXT and attenuation performance beyond 500 MHz.
☆ Support 10 Gigabit Ethernet application.
☆ Meet the strict flame retardancy and environmental requirements in Europe and US.
☆ Different jacket materials available for choice.
☆ Special purpose cables can be offered according to customer request.
☆ Different jacket color options available for choice.
◎ UTP Cat 6A Transmission Properties:
FREQ (MHz) |
NEXT
(dB/100m) Minimum Value/ Typical Value/ Standard Value |
IL
(dB/100m) |
RL
(dB/100m) Minimum Value/ Typical Value/ Standard Value |
ACR
(dB/100m) Minimum Value/ Typical Value/ Standard Value |
ELFEXT
(dB/100m) Minimum Value/ Typical Value/ Standard Value |
PSNEXT
(dB/100m) Minimum Value/ Typical Value/ Standard Value |
PSACR
(dB/100m) Minimum Value/ Typical Value/ Standard Value |
PSELFEXT
(dB/100m) Minimum Value/ Typical Value/ Standard Value |
1 |
74.3/95.0/74.3 |
2.0 |
20.0/28.0/20.0 |
72.2/94.0/72.2 |
67.8/92.0/67.8 |
72.3/92.0/72.3 |
70.2/90.0/70.2 |
64.8/85.0/64.8 |
4 |
65.3/88.0/65.3 |
3.7 |
23.0/30.0/23.0 |
61.4/88.0/61.4 |
55.8/80.0/55.8 |
63.3/83.0/63.3 |
59.5/80.0/59.5 |
52.8/73.0/52.8 |
8 |
60.8/85.0/60.8 |
5.3 |
24.5/33.0/24.5 |
55.4/83.0/55.4 |
49.7/75.0/49.7 |
58.8/80.0/58.8 |
53.5/76.0/53.5 |
46.7/70.0/46.7 |
10 |
59.3/83.0/59.3 |
5.9 |
25.0/36.0/25.0 |
53.3/78.0/53.3 |
47.8/72.0/47.8 |
57.3/77.0/57.3 |
51.3/72.0/51.3 |
44.8/65.0/44.8 |
16 |
56.2/80.0/56.2 |
7.6 |
25.0/36.0/25.0 |
48.6/74.0/48.6 |
43.7/68.0/43.7 |
54.2/74.0/54.2 |
46.6/68.0/46.6 |
40.7/61.0/40.7 |
20 |
54.8/78.0/54.8 |
8.3 |
25.0/36.0/25.0 |
46.3/71.0/46.3 |
41.8/65.0/41.8 |
52.8/73.0/52.8 |
44.3/66.0/44.3 |
38.8/59.0/38.8 |
25 |
53.3/77.0/53.3 |
9.5 |
24.3/35.0/24.3 |
43.8/69.0/43.8 |
39.8/63.0/39.8 |
51.3/71.0/51.3 |
41.8/63.0/41.8 |
36.8/57.0/36.8 |
31.25 |
51.9/76.0/51.9 |
10.4 |
23.6/34.0/23.6 |
41.1/67.0/41.1 |
37.9/62.0/37.9 |
49.9/70.0/49.9 |
39.1/60.0/39.1 |
34.9/55.0/34.9 |
62.5 |
47.4/70.0/47.4 |
14.9 |
21.5/33.5/21.5 |
31.9/57.0/31.9 |
31.9/56.0/31.9 |
45.4/65.0/45.4 |
29.9/51.0/29.9 |
28.9/49.0/28.9 |
100 |
44.3/68.0/44.3 |
19.0 |
20.1/33.0/20.1 |
24.4/50.0/24.4 |
27.8/52.0/27.8 |
42.3/62.0/42.3 |
22.4/44.0/22.4 |
24.8/45.0/24.8 |
200 |
39.8/65.0/39.8 |
27.4 |
18.0/31.0/18.0 |
10.6/38.0/10.6 |
21.8/46.0/21.8 |
37.8/58.0/37.8 |
8.6/32.0/8.6 |
18.8/39.0/18.8 |
250 |
38.3/62.0/38.3 |
31.0 |
17.3/30.5/17.3 |
5.3/33.0/5.3 |
19.8/44.0/19.8 |
36.3/56.0/36.3 |
3.3/27.0/3.3 |
16.8/37.0/16.8 |
300 |
37.1/61.0/37.1 |
34.2 |
16.8/29.0/16.8 |
0.5/29.0/0.5 |
18.3/42.0/18.3 |
35.1/55.0/35.1 |
-1.5/24.0/-1.5 |
15.3/35.0/15.3 |
350 |
36.1/60.0/36.1 |
37.1. |
16.3/28.0/16.3 |
-3.8/26.0/-3.8 |
16.9/41.0/16.9 |
34.1/54.0/34.1 |
-5.8/20.0/-5.8 |
13.9/34.0/13.9 |
400 |
35.3/59.0/35.3 |
40.0 |
15.9/27.0/15.9 |
-7.9/21.0/-7.9 |
15.8/40.0/15.8 |
33.3/53.0/33.3 |
-9.9/15.0/-9.9 |
12.8/33.0/12.8 |
450 |
34.5/58.0/34.5 |
46.3 |
15.5/26.5/15.5 |
-10.5/18.0/-10.5 |
14.7/40.5.0/14.7 |
32.5/52.0/32.5 |
-12.5/11.0/-12.5 |
11.7/32.5/11.7 |
500 |
33.8/57.0/33.8 |
45.3 |
15.2/26.0/15.2 |
-15.3/15.0/-15.3 |
13.8/39.0/13.8 |
31.8/51.0/31.8 |
-17.3/9.0/-17.3 |
10.8/32.0/10.8 |
625 |
32.4/53.0/32.4 |
51.1 |
14.5/25.0/14.5 |
-23.1/31.0/-23.1 |
11.8/36.0/11.8 |
30.4/50.0/30.4 |
-25.1/5.0/-25.1 |
8.8/29.0/8.8 |
* Data for 250MHz above are for reference only
◎ F/UTP & SF/UTP Cat 6A Transmission Properties:
FREQ (MHz) |
NEXT
(dB/100m)
Minimum Value/
Typical Value/
Standard Value |
IL
(dB/100m) |
RL
(dB/100m)
Minimum Value/
Typical Value/
Standard Value |
ACR
(dB/100m)
Minimum Value/
Typical Value/
Standard Value |
ELFEXT
(dB/100m)
Minimum Value/
Typical Value/
Standard Value |
PSNEXT
(dB/100m)
Minimum Value/
Typical Value/
Standard Value |
PSACR
(dB/100m)
Minimum Value/
Typical Value/
Standard Value |
PSELFEXT
(dB/100m)
Minimum Value/
Typical Value/
Standard Value |
1 |
74.3/86.0/74.3 |
2.0 |
20.0/33.0/20.0 |
72.2/84.0/72.2 |
67.8/91.0/67.8 |
72.3/81.0/72.3 |
70.2/80.5/70.2 |
64.8/84.0/64.8 |
4 |
65.3/77.0/65.3 |
3.7 |
23.0/35.5/23.0 |
61.4/73.0/61.4 |
55.8/79.0/55.8 |
63.3/72.0/63.3 |
59.5/70.0/59.5 |
52.8/72.0/52.8 |
8 |
60.8/75.0/60.8 |
5.3 |
24.5/36.0/24.5 |
55.4/70.0/55.4 |
49.7/74.0/49.7 |
58.8/69.0/58.8 |
53.5/66.0/53.5 |
46.7/69.0/46.7 |
10 |
59.3/71.0/59.3 |
5.9 |
25.0/38.0/25.0 |
53.3/66.0/53.3 |
47.8/71.0/47.8 |
57.3/65.0/57.3 |
51.3/62.0/51.3 |
44.8/64.0/44.8 |
16 |
56.2/68.0/56.2 |
7.6 |
25.0/35.2/25.0 |
48.6/61.0/48.6 |
43.7/67.0/43.7 |
54.2/62.0/54.2 |
46.6/58.0/46.6 |
40.7/60.0/40.7 |
20 |
54.8/67.0/54.8 |
8.3 |
25.0/35.0/25.0 |
46.3/59.0/46.3 |
41.8/65.0/41.8 |
52.8/61.0/52.8 |
44.3/55.0/44.3 |
38.8/59.0/38.8 |
25 |
53.3/65.0/53.3 |
9.5 |
24.3/34.0/24.3 |
43.8/57.0/43.8 |
39.8/63.0/39.8 |
51.3/60.0/51.3 |
41.8/53.0/41.8 |
36.8/57.0/36.8 |
31.25 |
51.9/64.0/51.9 |
10.4 |
23.6/33.1/23.6 |
41.1/54.0/41.1 |
37.9/61.0/37.9 |
49.9/54.0/49.9 |
39.1/50.0/39.1 |
34.9/54.0/34.9 |
62.5 |
47.4/59.0/47.4 |
14.9 |
21.5/32.2/21.5 |
31.9/44.0/31.9 |
31.9/55.0/31.9 |
45.4/58.0/45.4 |
29.9/41.0/29.9 |
28.9/48.0/28.9 |
100 |
44.3/56.0/44.3 |
19.0 |
20.1/31.6/20.1 |
24.4/38.0/24.4 |
27.8/51.0/27.8 |
42.3/50.0/42.3 |
22.4/34.0/22.4 |
24.8/44.0/24.8 |
200 |
39.8/52.0/39.8 |
27.4 |
18.0/29.8/18.0 |
10.6/25.0/10.6 |
21.8/45.0/21.8 |
37.8/45.0/37.8 |
8.6/20.5/8.6 |
18.8/38.0/18.8 |
250 |
38.3/50.0/38.3 |
31.0 |
17.3/28.7/17.3 |
5.3/19.0/5.3 |
19.8/43.0/19.8 |
36.3/44.0/36.3 |
3.3/15.0/3.3 |
16.8/36.0/16.8 |
300 |
37.1/49.0/37.1 |
34.2 |
16.8/28.0/16.8 |
0.5/14.0/0.5 |
18.3/38.0/18.3 |
35.1/43.0/35.1 |
-1.5/10.0/-1.5 |
15.3/31.0/15.3 |
350 |
36.1/48.0/36.1 |
37.1 |
16.3/27.5/16.3 |
-3.8/9.0/-3.8 |
16.9/37.0/16.9 |
34.1/41.0/34.1 |
-5.8/7.0/-5.8 |
13.9/30.0/13.9 |
400 |
35.3/47.0/35.3 |
40.0 |
15.9/27.0/15.9 |
-7.9/7.0/-7.9 |
15.8/36.0/15.8 |
33.3/40.0/33.3 |
-9.9/3.0/-9.9 |
12.8/29.0/12.8 |
450 |
34.5/47.0/34.5 |
46.3 |
15.5/26.5/15.5 |
-10.5/6.0/-10.5 |
14.7/35.0/14.7 |
32.5/39.0/32.5 |
-12.5/2.0/-12.5 |
11.7/27.5/11.7 |
500 |
33.8/47.0/33.8 |
45.3 |
15.2/26.0/15.2 |
-15.3/5.0/-15.3 |
13.8/34.0/13.8 |
31.8/38.0/31.8 |
-17.3/0.0/-17.3 |
10.8/27.0/10.8 |
625 |
32.4/45.0/32.4 |
51.1 |
14.5/25.0/14.5 |
-23.1/1.0/-23.1 |
11.8/33.0/11.8 |
30.4/37.0/30.4 |
-25.1/-3.9/-25.1 |
8.8/26.0/8.8 |
◎ U/FTP & S/FTP Cat 6A Transmission Properties:
FREQ (MHz) |
NEXT
(dB/100m) Minimum Value/ Typical Value/ Standard Value |
IL
(dB/100m) |
RL
(dB/100m) Minimum Value/ Typical Value/ Standard Value |
ACR
(dB/100m) Minimum Value/ Typical Value/ Standard Value |
ELFEXT
(dB/100m) Minimum Value/ Typical Value/ Standard Value |
PSNEXT
(dB/100m) Minimum Value/ Typical Value/ Standard Value |
PSACR
(dB/100m) Minimum Value/ Typical Value/ Standard Value |
PSELFEXT
(dB/100m) Minimum Value/ Typical Value/ Standard Value |
1 |
87.0/90.0/74.3 |
2.0 |
20.0/28.0/20.0 |
85.0/88.0/72.2 |
73.8/75.0/67.8 |
85.0/88.0/72.3 |
83.0/86.0/70.2 |
70.8/72.0/64.8 |
4 |
80.0/90.0/65.3 |
3.7 |
23.0/30.0/23.0 |
76.0/86.0/61.4 |
61.8/75.0/55.8 |
78.0/88.0/63.3 |
74.0/84.0/59.5 |
58.0/72.0/52.8 |
8 |
80.0/90.0/60.8 |
5.3 |
24.5/33.0/24.5 |
74.7/84.0/55.4 |
55.7/75.0/49.7 |
78.0/88.0/58.8 |
72.7/82.0/53.5 |
52.7/72.0/46.7 |
10 |
80.0/90.0/59.3 |
5.9 |
25.0/36.0/25.0 |
74.0/84.0/53.3 |
53.8/74.0/47.8 |
78.0/88.0/57.3 |
72.0/82.0/51.3 |
50.8/71.0/44.8 |
16 |
80.0/90.0/56.2 |
7.6 |
25.0/36.0/25.0 |
72.4/82.0/48.6 |
49.7/70.0/43.7 |
78.0/88.0/54.2 |
70.4/80.0/46.6 |
46.7/67.0/40.7 |
20 |
80.0/90.0/54.8 |
8.3 |
25.0/36.0/25.0 |
71.5/81.0/46.3 |
47.8/68.0/41.8 |
78.0/88.0/52.8 |
69.5/79.0/44.3 |
44.8/65.0/38.8 |
25 |
80.0/90.0/53.3 |
9.5 |
24.3/35.0/24.3 |
70.5/80.0/43.8 |
45.8/68.0/39.8 |
78.0/88.0/51.3 |
68.5/78.0/41.8 |
42.8/65.0/36.8 |
31.25 |
80.0/90.0/51.9 |
10.4 |
23.6/34.0/23.6 |
69.3/79.0/41.1 |
43.9/64.0/37.9 |
78.0/88.0/49.9 |
67.3/77.0/39.1 |
40.9/61.0/34.9 |
62.5 |
75.3/90.0/47.4 |
14.9 |
21.5/33.5/21.5 |
59.9/74.0/31.9 |
37.9/58.0/31.9 |
69.1/83.0/45.4 |
57.9/72.0/29.9 |
34.9/55.0/28.9 |
100 |
71.1/85.0/44.3 |
19.0 |
20.1/33.0/20.1 |
51.3/65.0/24.4 |
33.8/54.0/27.8 |
69.1/83.0/42.3 |
49.3/63.0/22.4 |
30.8/51.0/24.8 |
200 |
71.1/85.0/39.8 |
27.4 |
18.0/31.0/18.0 |
42.1/56.0/10.6 |
27.8/51.0/21.8 |
69.1/83.0/37.8 |
40.1/54.0/8.6 |
24.8/48.0/18.8 |
250 |
71.1/85.0/38.3 |
31.0 |
17.3/30.5/17.3 |
38.2/52.0/5.3 |
25.8/48.0/19.8 |
61.7/78.0/36.3 |
36.2/50.0/3.3 |
22.8/45.0/16.8 |
300 |
63.7/80.0/37.1 |
34.2 |
16.8/29.0/16.8 |
27.3/43.0/0.5 |
24.3/45.0/18.3 |
61.7/78.0/35.1 |
25.3/41.0/-1.5 |
21.2/42.0/15.3 |
350 |
63.7/80.0/36.1 |
37.1 |
16.3/28.0/16.3 |
23.9/40.0/-3.8 |
23.9/45.0/16.9 |
61.7/78.0/34.1 |
21.9/38.0/-5.8 |
19.9/42.0/13.9 |
400 |
63.7/80.0/35.3 |
40.0 |
15.9/27.0/15.9 |
20.7/37.0/-7.9 |
21.8/45.0/15.8 |
61.7/78.0/33.3 |
18.7/35.0/-9.9 |
19.7/42.0/12.8 |
450 |
63.7/80.0/34.5 |
46.3 |
15.5/26.5/15.5 |
17.4/33.0/-10.5 |
20.5/42.0/14.7 |
61.7/78.0/32.5 |
15.4/31.0/-12.5 |
17.5/39.0/11.7 |
500 |
63.7/80.0/33.8 |
45.3 |
15.2/26.0/15.2 |
14.8/31.0/-15.3 |
19.8/42.0/13.8 |
61.7/78.0/31.8 |
12.8/29.0/-17.3 |
16.8/39.0/10.8 |
625 |
60.0/70.0/32.4 |
51.1 |
14.5/25.0/14.5 |
5.5/15.5/-23.1 |
18.8/42.0/11.8 |
58.0/68.0/30.4 |
9.9/26.0/-25.1 |
16.0/39.0/8.8 |
Ordering Information :
Model |
Product Description |
AD-BC-CAT6AUTP4PCM23 |
U/UTP Cat6A 4 Pairs, CM Grade (Non-Plenum) |
AD-BC-CAT6AFTP4PCM23 |
F/UTP Cat6A 4 Pairs, CM Grade (Non-Plenum) |
AD-BC-CAT6AS-FTP4PCM23 |
SF/UTP Cat6A 4 Pairs, CM Grade (Non-Plenum) |
AD-BC-CAT6ASTP4PCM23 |
U/FTP Cat6A 4 Pairs, CM Grade (Non-Plenum) |
AD-BC-CAT6ASFTP4PCM23 |
S/FTP Cat6A 4 Pairs, CM Grade (Non-Plenum) |
AD-BC-CAT6AUTP4PLH23 |
U/UTP Cat6A 4 Pairs, LSZH Grade (IEC 60332-1) |
AD-BC-CAT6AFTP4PLH23 |
F/UTP Cat6A 4 Pairs, LSZH Grade (IEC60332-1) |
AD-BC-CAT6ASTP4PLH23 |
U/FTP Cat6A 4 Pairs, LSZH Grade (IEC60332-1 ) |
AD-BC-CAT6AUTP4PFRLH23 |
U/UTP Cat6A 4 Pairs, LSFROH Grade (IEC60332-1 & IEC60332-3C) |
AD-BC-CAT6AS-FTP4PFRLH23 |
SF/UTP Cat6A 4 Pairs, LSFROH Grade (IEC60332-1 & IEC60332-3C) |
AD-BC-CAT6ASFTP4PFRLH23 |
S/FTP Cat6A 4 Pairs, LSFROH Grade (IEC60332-1 & IEC60332-3C) |
AD-BC-CAT6AUTP4PPE23 |
Outdoor U/UTP Cat6A 4 Pairs (Water-blocking /UV Resistant) |
AD-BC-CAT6AFTP4PPE23 |
Outdoor F/UTP Cat6A 4 Pairs (Water-blocking /UV Resistant) |
AD-BC-CAT6AS-FTP4PPE23 |
Outdoor SF/UTP Cat6A 4 Pairs (Water-blocking /UV Resistant) |
AD-BC-CAT6ASTP4PPE23 |
Outdoor U/FTP Cat6A 4 Pairs (Water-blocking /UV Resistant) |
AD-BC-CAT6ASFTP4PPE23 |
Outdoor S/FTP Cat6A 4 Pairs (Water-blocking /UV Resistant) |
|
Product Profile
