◎ Applications:
10Base-T, 100Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155Mbps ATM, 622Mbps ATM, 1000Base-T
◎ Standards:
ISO/IEC 11801, ANSI/TIA/EIA-568-B

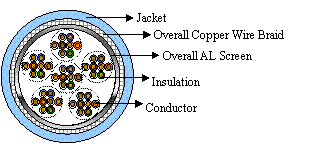

◎ Product Construction Matrix:
| U/UTP | F/UTP | SF/UTP | ||
| Conductor | Material | Solid Plain Copper | Solid Plain Copper | Solid Plain Copper |
| Conposition | 1/0.5mm | 1/0.5mm | 1/0.5mm | |
| Gauge | 24AWG | 24AWG | 24AWG | |
| Insulation | Material | PE | PE | PE |
| Diameter | 0.86 | 0.86 | 0.86 | |
| Screen | Material | Nil | Overall Aluminum Tape Screen | Overall Aluminum Tape Screen & Copper Wire Braid |
| Drain Wire | Material | Nil | 1/0.5mm | 1/0.5mm |
| Assembly | No of Pairs | 25/50/100 | 25/50/100 | 25/50/100 |
| Outer Sheath | Material | PE/PVC/LSF/LSZH | PE/PVC/LSF/LSZH | PE/PVC/LSF/LSZH |
Remark: PE- Polyethylene; PVC- Polyvinyl Chloride; LSF- Low Smoke & Fume; LSZH- Low Smoke Zero Halogen; LSFROH-Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C); PVC can be classified as CMX, CM, CMR and CMP.
◎ Working Frequency:
1-100MHz
◎ Product Certification:
E222756
◎ Technical Parameters:
☆ Characteristic Impedance: 100±15Ω
☆ Nominal Velocity of Propagation(NVP): 69%
☆ Maximum DC Resistance: 9.38Ω/100m
 |
 |
 |
||
| U/UTP | F/UTP | SF/UTP |
☆ Maximum Mutual Capacitance: 5.6 nF/100m
☆ Maximum Capacitance Unbalance: 330 pF/100m
☆ Maximum Resistance Unbalance: 5%
☆ Maximum Propagation Delay Skew: 30 ns/100m
☆ Maximum Propagation Delay: 536 ns/100m@100 MHz
☆ Minimum Bending radius: 10 x Overall Diameter
☆ Voltage Rating: 60V rms
☆ Maximum Pulling load: 80N
☆ Working Temperature: -20℃ ~ +60℃
☆ Storage Temperature: -5℃ ~ +50℃
☆ Flame Retardancy: UL 1581 (CM Jacket); UL 1666 (CMR Jacket); UL 910 (CMPJacket); IEC 60332-1 (FRPVC & LSZH Jacket); IEC 60332-1 & IEC 60332-3C (LSFROH Jacket)
◎ Product Highlights:
☆ Provide excellent bandwidth beyond 200 MHz.
☆ Designed for use in data and voice backbone application.
☆ Meet the strict flame retardancy and environmental requirements
in Europe and US.
☆ Easy identifiable color code for ease of installation.
☆ Different jacket options available for choice.
◎ Transmission Properties:
| FREQ (MHz) |
NEXT(dB/100m) Min.Value/ Typical Value/ Standard Value |
IL (dB/100m) |
RL (dB) Min.Value/ Typical Value/ Standard Value |
ACR (dB/100m) Min.Value/ Typical Value/ Standard Value |
ELFEXT (dB/100m) Min.Value/ Typical Value/ Standard Value |
PSNEXT (dB/100m) Min.Value/ Typical Value/ Standard Value |
PSACR (dB/100m) Min.Value/ Typical Value/ Standard Value |
PSELFEXT (dB/100m) Min.Value/ Typical Value/ Standard Value |
| 1 | 68.3/74.0/65.3 | 2 | 20.2/26.0/20.2 | 66.3/72.0/63.3 | 64.8/69.0/63.8 | 65.3/71.0/62.3 | 63.3/69.0/60.3 | 61.8/66.0/60.8 |
| 4 | 59.3/65.0/56.3 | 4.1 | 23.0/29.0/23.0 | 55.2/60.9/52.2 | 52.7/57.0/51.7 | 56.3/62.0/53.3 | 52.2/57.9/49.2 | 49.7/54.0/48.7 |
| 8 | 54.8/61.0/51.8 | 5.8 | 24.5/30.5/24.5 | 49.0/55.2/46.0 | 46.7/51.0/45.7 | 51.8/58.0/48.8 | 46.0/52.2/43.0 | 43.7/48.0/42.7 |
| 10 | 53.3/59.0/50.3 | 6.5 | 25.0/31.0/25.0 | 46.8/52.5/43.8 | 44.8/49.0/43.8 | 50.3/56.0/47.3 | 43.8/49.5/40.8 | 41.8/46.0/40.8 |
| 16 | 50.3/56.0/47.3 | 8.2 | 25.0/31.0/25.0 | 42.1/47.8/39.1 | 40.7/45.0/39.7 | 47.4/53.0/44.3 | 39.1/44.8/36.1 | 37.7/42.0/36.7 |
| 20 | 48.8/55.0/45.8 | 9.3 | 25.0/31.0/25.0 | 39.5/45.7/36.5 | 38.7/43.0/37.7 | 45.8/52.0/42.8 | 36.5/42.7/33.5 | 35.7/40.0/34.7 |
| 25 | 47.3/53.0/44.3 | 10.4 | 24.3/30.3/24.3 | 36.9/42.6/33.9 | 36.8/41.0/35.8 | 44.3/50.0/41.3 | 33.9/39.6/30.9 | 33.8/38.0/32.8 |
| 31.25 | 45.9/52.0/42.9 | 11.4 | 23.6/29.6/23.6 | 34.2/40.3/31.2 | 34.9/39.0/33.9 | 42.9/49.0/39.9 | 31.2/37.3/28.2 | 31.9/36.0/30.9 |
| 62.5 | 41.4/47.0/38.4 | 17 | 21.5/27.5/21.5 | 24.4/30.0/21.4 | 28.8/33.0/27.8 | 38.4/44.0/35.4 | 21.4/27.0/18.4 | 25.8/30.0/24.8 |
| 100 | 38.3/44.0/35.3 | 22 | 20.1/26.1/20.1 | 16.3/22.0/13.3 | 24.8/29.0/23.8 | 35.3/41.0/32.3 | 13.3/19.0/10.3 | 21.8/26.0/20.8 |
| 155 | 35.5/41.0/32.5 | 28.1 | 18.8/24.8/18.8 | 7.4/12.9/4.4 | 20.9/25.0/19.9 | 32.5/38.0/29.5 | 4.4/9.9/1.4 | 17.9/22.0/16.9 |
| 200 | 33.7/40.0/30.7 | 32.4 | 18.0/24.0/18.0 | 1.3/7.6/-1.7 | 19.7/24.0/18.7 | 30.0/37.0/27.7 | -1.7/4.6/-4.7 | 16.7/21.0/15.7 |
◎ Ordering Information:
| Model | Product Description |
| AD-BC-CAT5EUTP24PCM24 | U/UTP Cat5e 24Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT5EUTP48PCM24 | U/UTP Cat5e 48Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT5EUTP24PLH24 | U/UTP Cat5e 24Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT5EUTP48PLH24 | U/UTP Cat5e 48Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT5EFTP24PCM24 | F/UTP Cat5e 24Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT5EFTP48PCM24 | F/UTP Cat5e 48Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT5EFTP24PLH24 | F/UTP Cat5e 24Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT5EFTP48PLH24 | F/UTP Cat5e 48Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT5ES-FTP24PCM24 | SF/UTP Cat5e 24Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT5ES-FTP48PCM24 | SF/UTP Cat5e 48Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT5ES-FTP24PLH24 | SF/UTP Cat5e 24Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT5ES-FTP48PLH24 | SF/UTP Cat5e 48Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT5EUTP24PPE24 | Outdoor U/UTP Cat5e(4×6) Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT5EUTP48PPE24 | Outdoor U/UTP Cat5e(4×12) Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT5EFTP24PPE24 | Outdoor U/UTP Cat5e(4×6) Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT5EFTP48PPE24 | Outdoor U/UTP Cat5e(4×12) Pairs, CM Grade (Non-Plenum) |
