◎ Applications:
10Base-T, 100Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155Mbps ATM, 622Mbps ATM
◎ Standards:
ISO/IEC 11801，ANSI/TIA/EIA-568-B
◎ Product Construction Matrix:
| U/UTP | F/UTP | SF/UTP | ||
| Conductor | Material | Solid Plain Copper | Solid Plain Copper | Solid Plain Copper |
| Conposition(number/mm) | 1/0.5mm | 1/0.5mm | 1/0.5mm | |
| Gauge | 24AWG | 24AWG | 24AWG | |
| Insulation | Material | PE | PE | PE |
| Diameter | 0.86 | 0.86 | 0.86 | |
| Screen | Material | Nil | Overall Aluminum Tape Screen | Overall Aluminum Tape Screen & Copper Wire Braid |
| Drain Wire | Material | Nil | 1/0.5mm | 1/0.5mm |
| Assembly | No of Pairs | 25/50/100 | 25/50/100 | 25/50/100 |
| Outer Sheath | Material | PE/PVC/LSF/LSZH | PE/PVC/LSF/LSZH | PE/PVC/LSF/LSZH |
Remark: PE-Polyethylene; PVC-Polyvinyl Chloride; LSF-Low Smoke & Fume; LSZH-Low Smoke Zero Halogen; LSFROH-Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C); PVC can be classified as CMX, CM, CMR and CMP
◎ Working Frequency:
1-100MHz
◎ Product Certification:
E222756
◎ Technical Parameters:
☆ Characteristic Impedance: 100±15Ω
☆ Nominal Velocity of Propagation(NVP): 69%
☆ Maximum DC Resistance: 9.38Ω/100m
☆ Maximum Mutual Capacitance: 5.6 nF/100m
☆ Maximum Capacitance Unbalance: 330 pF/100m
☆ Maximum Resistance Unbalance: 5%
☆ Maximum Propagation Delay Skew: 30 ns/100m
☆ Maximum Propagation Delay: 536 ns/100m@100 MHz
☆ Minimum Bending radius: 10 x Overall Diameter
☆ Voltage Rating: 60V rms
☆ Maximum Pulling load: 80N
☆ Working Temperature: -20 ℃ ~ +60℃
☆ Storage Temperature: -5℃ ~ + 50℃
☆ Flame Retardancy: UL 1581 (CM Jacket); UL 1666 (CMR Jacket); UL 910 (CMP Jacket); IEC 60332-1 (FRPVC & LSZH Jacket); IEC 60332-1 & IEC 60332-3C (LSFROH Jacket)
◎ Product Highlights:
☆ Provide excellent bandwidth beyond 100 MHz.
☆ Designed for use in data and voice backbone application.
☆ Meet the strict flame retardancy and environmental requirements in Europe and US.
☆ Easy identifiable color code for ease of installation.
◎ Transmission Properties:
| FREQ (MHz) | NEXT(dB/100m) Min.Value/ Typical Value/Standard Value |
IL(dB/100m) | SRL (dB) Min.Value/ Typical Value/Standard Value |
| 1 | 64.0/71.0/62.0 | 2 | 24.5/26.0/23.0 |
| 4 | 55.0/62.0/53.0 | 4 | 24.5/26.0/23.0 |
| 8 | 49.5/57.0/48.0 | 5.7 | 24.5/26.0/23.0 |
| 10 | 49.0/56.0/47.0 | 6.4 | 24.5/26.0/23.0 |
| 16 | 44.9/52.0/44.0 | 8.2 | 24.5/26.0/23.0 |
| 20 | 42.5/48.0/42.0 | 9.2 | 24.5/26.0/23.0 |
| 25 | 42.0/48.0/41.0 | 10.3 | 24.5/26.0/23.0 |
| 31.25 | 40.6/48.0/39.0 | 11.6 | 22.5/24.0/21.0 |
| 62.5 | 36.1/43.0/35.0 | 16.9 | 19.5/22.0/18.0 |
| 100 | 34.0/40.0/32.0 | 21.8 | 17.5/20.0/16.0 |
◎ Ordering Information
| Model | Product Description |
| AD-BC-CAT5UTP25PCM24 | U/UTP Cat5 25Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT5UTP50PCM24 | U/UTP Cat5 50Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT5UTP100PCM24 | U/UTP Cat5 100Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT5UTP25PLH24 | U/UTP Cat5 25Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT5UTP50PLH24 | U/UTP Cat5 50Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT5UTP100PLH24 | U/UTP Cat5 100Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT5UTP25PPE24 | Outdoor U/UTP Cat5 25Pairs (Water Blocking /UV Resistant) |
| AD-BC-CAT5UTP50PPE24 | Outdoor U/UTP Cat5 50Pairs (Water Blocking /UV Resistant) |
| AD-BC-CAT5UTP100PPE24 | Outdoor U/UTP Cat5 100Pairs (Water Blocking /UV Resistant) |
| AD-BC-CAT5FTP25PCM24 | F/UTP Cat5 25Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT5FTP50PCM24 | F/UTP Cat5 50Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT5FTP100PCM24 | F/UTP Cat5 100Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT5FTP25PLH24 | F/UTP Cat5 25Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT5FTP50PLH24 | F/UTP Cat5 50Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT5FTP100PLH24 | F/UTP Cat5 100Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT5FTP25PPE24 | Outdoor F/UTP Cat5 25Pairs (Water Blocking /UV Resistant) |
| AD-BC-CAT5FTP50PPE24 | Outdoor F/UTP Cat5 50Pairs (Water Blocking /UV Resistant) |
| AD-BC-CAT5FTP100PPE24 | Outdoor F/UTP Cat5 100Pairs (Water Blocking /UV Resistant) |

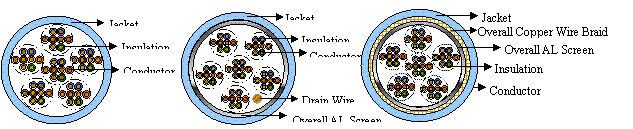

U/UTP F/FTP SF/UTP
