◎ Applications:
10Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155MbpsATM, 622 Mbps ATM, 1000Base-T, 10GBase-T
◎ Standards:
ISO / IEC 11801, EN50173, TIA / EIA 568-B

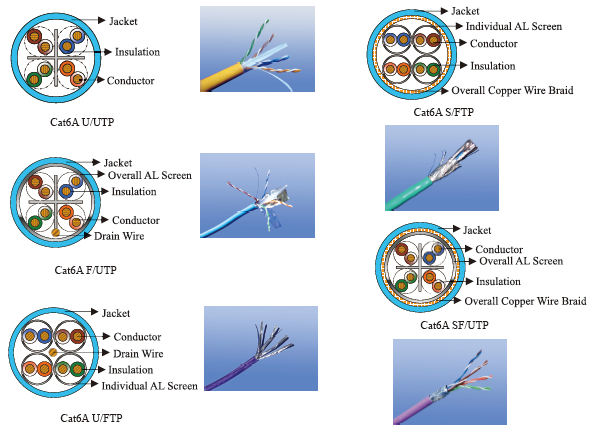

◎ Product Construction Matrix:
| U/UTP | F/UTP | U/FTP | SF/UTP | S/FTP | |
| Conductor | 23AWG Solid Plain Copper | 23AWG Solid Plain Copper | 23AWG Solid Plain Copper | 23AWG Solid Plain Copper | 23AWG Solid Plain Copper |
| Insulation | PE | PE | PE | PE | PE |
| Screen | Nil | Overall Aluminum Tape Screen | Individual Aluminum Tape Screen | Overall Aluminum Tape Screen & Copper Wire Braid | Individual Aluminum Tape Screen & Copper Wire Braid |
| Drain Wire | Nil | 1/0.5 mm | 1/0.5 mm | Nil | Nil |
| Jacket | PE/PVC/LSF/LSZH/LFLSFROH | PE/PVC/LSF/LSZH | PE/PVC/LSF/LSZH/LSFROH | ||
Remark: PE- Polyethylene; PVC- Polyvinyl Chloride; LSF- Low Smoke & Fume; LSZH- Low Smoke Zero Halogen; LSFROH-Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C); PVC can be classified as CMX, CM, CMR and CMP.
◎ Working Frequency:
1-500MHz
◎ Technical Parameters:
☆ Characteristic Impedance: 100±15Ω (1-250MHz); 100±22Ω (100-500Mhz)
☆ Nominal Velocity of Propagation (NVP): CMX, CM, CMR, LSZH 69%; CMP 72%
☆ Maximum Mutual Capacitance: 5.6nF/100m
☆ Maximum Capacitance Unbalance: 330pF/100m
☆ Maximum DC Resistance: 7.5Ω/100m
☆ Maximum Resistance Unbalance: 3%
☆ Maximum Propagation Delay Skew: 30ns/100m (1-125MHz)
☆ Maximum Propagation Delay: 536 ns/100m @ 100MHz
☆ Minimum Bending radius: 10 x Overall Diameter
☆ Maximum Pulling load: 80N
☆ Working Temperature: -20℃ ~+ 60℃
☆ Storage Temperature: -5℃ ~ +50℃
☆ Flame Retardancy:
UL 1581 (CM Jacket); UL 1666 (CMR Jacket );
UL 910 (CMP Jacket); IEC 60332-1 (FRPVC & LSZH Jacket);
IEC 60332-1 & IEC 60332-3C (LSFROH Jacket)
◎ Product Certification:
E222756
◎ Product Categories :
| Construction | Conductor Diameter (mm) | Diameter Over Insulation (mm) | Pairs | Screen | Overall Diameter (mm) | Jacket |
| U/UTP | 0.57/0.58 | 1.02 | 4 | Nil | 8.5 | PVC/LSZH |
| U/UTP | 0.57/0.58 | 1.02 | 4 | Nil | 8.9 | LSFROH |
| U/UTP | 0.57/0.58 | 1.02 | 4 | Nil | 8.7 | PE |
| F/UTP | 0.57/0.58 | 1.02 | 4 | Overall Aluminum Tape Screen | 6.3 | PVC/LSZH |
| F/UTP | 0.57/0.58 | 1.02 | 4 | Overall Aluminum Tape Screen | 6.5 | PE |
| U/FTP | 0.57/0.58 | 1.02 | 4 | Individual Aluminum Tape Screen | 7.5 | PVC/LSZH |
| SF/UTP | 0.57/0.58 | 1.02 | 4 | Overall Aluminum Tape Screen & Copper Wire Braid | 6.6 | PVC/LSZH |
| SF/UTP | 0.57/0.58 | 1.02 | 4 | Overall Aluminum Tape Screen & Copper Wire Braid | 7.2 | LSFROH |
| S/FTP | 0.57/0.58 | 1.02 | 4 | Individual Aluminum Tape Screen & Overall Copper Wire Braid | 8.0 | PVC/LSZH |
| S/FTP | 0.57/0.58 | 1.02 | 4 | Individual Aluminum Tape Screen & Overall Copper Wire Braid | 8.4 | LSFROH |
◎ Product Highlights:
☆ Provide excellent NEXT and attenuation performance beyond 500 MHz.
☆ Support 10 Gigabit Ethernet application.
☆ Meet the strict flame retardancy and environmental requirements in Europe and US.
☆ Different jacket materials available for choice.
☆ Special purpose cables can be offered according to customer request.
☆ Different jacket color options available for choice.
◎ UTP Cat 6A Transmission Properties:
| FREQ (MHz) | NEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value |
IL (dB/100m) |
RL (dB/100m) Minimum Value/ Typical Value/ Standard Value |
ACR (dB/100m) Minimum Value/ Typical Value/ Standard Value |
ELFEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value |
PSNEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value |
PSACR (dB/100m) Minimum Value/ Typical Value/ Standard Value |
PSELFEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value |
| 1 | 74.3/95.0/74.3 | 2.0 | 20.0/28.0/20.0 | 72.2/94.0/72.2 | 67.8/92.0/67.8 | 72.3/92.0/72.3 | 70.2/90.0/70.2 | 64.8/85.0/64.8 |
| 4 | 65.3/88.0/65.3 | 3.7 | 23.0/30.0/23.0 | 61.4/88.0/61.4 | 55.8/80.0/55.8 | 63.3/83.0/63.3 | 59.5/80.0/59.5 | 52.8/73.0/52.8 |
| 8 | 60.8/85.0/60.8 | 5.3 | 24.5/33.0/24.5 | 55.4/83.0/55.4 | 49.7/75.0/49.7 | 58.8/80.0/58.8 | 53.5/76.0/53.5 | 46.7/70.0/46.7 |
| 10 | 59.3/83.0/59.3 | 5.9 | 25.0/36.0/25.0 | 53.3/78.0/53.3 | 47.8/72.0/47.8 | 57.3/77.0/57.3 | 51.3/72.0/51.3 | 44.8/65.0/44.8 |
| 16 | 56.2/80.0/56.2 | 7.6 | 25.0/36.0/25.0 | 48.6/74.0/48.6 | 43.7/68.0/43.7 | 54.2/74.0/54.2 | 46.6/68.0/46.6 | 40.7/61.0/40.7 |
| 20 | 54.8/78.0/54.8 | 8.3 | 25.0/36.0/25.0 | 46.3/71.0/46.3 | 41.8/65.0/41.8 | 52.8/73.0/52.8 | 44.3/66.0/44.3 | 38.8/59.0/38.8 |
| 25 | 53.3/77.0/53.3 | 9.5 | 24.3/35.0/24.3 | 43.8/69.0/43.8 | 39.8/63.0/39.8 | 51.3/71.0/51.3 | 41.8/63.0/41.8 | 36.8/57.0/36.8 |
| 31.25 | 51.9/76.0/51.9 | 10.4 | 23.6/34.0/23.6 | 41.1/67.0/41.1 | 37.9/62.0/37.9 | 49.9/70.0/49.9 | 39.1/60.0/39.1 | 34.9/55.0/34.9 |
| 62.5 | 47.4/70.0/47.4 | 14.9 | 21.5/33.5/21.5 | 31.9/57.0/31.9 | 31.9/56.0/31.9 | 45.4/65.0/45.4 | 29.9/51.0/29.9 | 28.9/49.0/28.9 |
| 100 | 44.3/68.0/44.3 | 19.0 | 20.1/33.0/20.1 | 24.4/50.0/24.4 | 27.8/52.0/27.8 | 42.3/62.0/42.3 | 22.4/44.0/22.4 | 24.8/45.0/24.8 |
| 200 | 39.8/65.0/39.8 | 27.4 | 18.0/31.0/18.0 | 10.6/38.0/10.6 | 21.8/46.0/21.8 | 37.8/58.0/37.8 | 8.6/32.0/8.6 | 18.8/39.0/18.8 |
| 250 | 38.3/62.0/38.3 | 31.0 | 17.3/30.5/17.3 | 5.3/33.0/5.3 | 19.8/44.0/19.8 | 36.3/56.0/36.3 | 3.3/27.0/3.3 | 16.8/37.0/16.8 |
| 300 | 37.1/61.0/37.1 | 34.2 | 16.8/29.0/16.8 | 0.5/29.0/0.5 | 18.3/42.0/18.3 | 35.1/55.0/35.1 | -1.5/24.0/-1.5 | 15.3/35.0/15.3 |
| 350 | 36.1/60.0/36.1 | 37.1. | 16.3/28.0/16.3 | -3.8/26.0/-3.8 | 16.9/41.0/16.9 | 34.1/54.0/34.1 | -5.8/20.0/-5.8 | 13.9/34.0/13.9 |
| 400 | 35.3/59.0/35.3 | 40.0 | 15.9/27.0/15.9 | -7.9/21.0/-7.9 | 15.8/40.0/15.8 | 33.3/53.0/33.3 | -9.9/15.0/-9.9 | 12.8/33.0/12.8 |
| 450 | 34.5/58.0/34.5 | 46.3 | 15.5/26.5/15.5 | -10.5/18.0/-10.5 | 14.7/40.5.0/14.7 | 32.5/52.0/32.5 | -12.5/11.0/-12.5 | 11.7/32.5/11.7 |
| 500 | 33.8/57.0/33.8 | 45.3 | 15.2/26.0/15.2 | -15.3/15.0/-15.3 | 13.8/39.0/13.8 | 31.8/51.0/31.8 | -17.3/9.0/-17.3 | 10.8/32.0/10.8 |
| 625 | 32.4/53.0/32.4 | 51.1 | 14.5/25.0/14.5 | -23.1/31.0/-23.1 | 11.8/36.0/11.8 | 30.4/50.0/30.4 | -25.1/5.0/-25.1 | 8.8/29.0/8.8 |
* Data for 250MHz above are for reference only
◎ F/UTP & SF/UTP Cat 6A Transmission Properties:
| FREQ (MHz) | NEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value |
IL (dB/100m) |
RL (dB/100m) Minimum Value/ Typical Value/ Standard Value |
ACR (dB/100m) Minimum Value/ Typical Value/ Standard Value |
ELFEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value |
PSNEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value |
PSACR (dB/100m) Minimum Value/ Typical Value/ Standard Value |
PSELFEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value |
| 1 | 74.3/86.0/74.3 | 2.0 | 20.0/33.0/20.0 | 72.2/84.0/72.2 | 67.8/91.0/67.8 | 72.3/81.0/72.3 | 70.2/80.5/70.2 | 64.8/84.0/64.8 |
| 4 | 65.3/77.0/65.3 | 3.7 | 23.0/35.5/23.0 | 61.4/73.0/61.4 | 55.8/79.0/55.8 | 63.3/72.0/63.3 | 59.5/70.0/59.5 | 52.8/72.0/52.8 |
| 8 | 60.8/75.0/60.8 | 5.3 | 24.5/36.0/24.5 | 55.4/70.0/55.4 | 49.7/74.0/49.7 | 58.8/69.0/58.8 | 53.5/66.0/53.5 | 46.7/69.0/46.7 |
| 10 | 59.3/71.0/59.3 | 5.9 | 25.0/38.0/25.0 | 53.3/66.0/53.3 | 47.8/71.0/47.8 | 57.3/65.0/57.3 | 51.3/62.0/51.3 | 44.8/64.0/44.8 |
| 16 | 56.2/68.0/56.2 | 7.6 | 25.0/35.2/25.0 | 48.6/61.0/48.6 | 43.7/67.0/43.7 | 54.2/62.0/54.2 | 46.6/58.0/46.6 | 40.7/60.0/40.7 |
| 20 | 54.8/67.0/54.8 | 8.3 | 25.0/35.0/25.0 | 46.3/59.0/46.3 | 41.8/65.0/41.8 | 52.8/61.0/52.8 | 44.3/55.0/44.3 | 38.8/59.0/38.8 |
| 25 | 53.3/65.0/53.3 | 9.5 | 24.3/34.0/24.3 | 43.8/57.0/43.8 | 39.8/63.0/39.8 | 51.3/60.0/51.3 | 41.8/53.0/41.8 | 36.8/57.0/36.8 |
| 31.25 | 51.9/64.0/51.9 | 10.4 | 23.6/33.1/23.6 | 41.1/54.0/41.1 | 37.9/61.0/37.9 | 49.9/54.0/49.9 | 39.1/50.0/39.1 | 34.9/54.0/34.9 |
| 62.5 | 47.4/59.0/47.4 | 14.9 | 21.5/32.2/21.5 | 31.9/44.0/31.9 | 31.9/55.0/31.9 | 45.4/58.0/45.4 | 29.9/41.0/29.9 | 28.9/48.0/28.9 |
| 100 | 44.3/56.0/44.3 | 19.0 | 20.1/31.6/20.1 | 24.4/38.0/24.4 | 27.8/51.0/27.8 | 42.3/50.0/42.3 | 22.4/34.0/22.4 | 24.8/44.0/24.8 |
| 200 | 39.8/52.0/39.8 | 27.4 | 18.0/29.8/18.0 | 10.6/25.0/10.6 | 21.8/45.0/21.8 | 37.8/45.0/37.8 | 8.6/20.5/8.6 | 18.8/38.0/18.8 |
| 250 | 38.3/50.0/38.3 | 31.0 | 17.3/28.7/17.3 | 5.3/19.0/5.3 | 19.8/43.0/19.8 | 36.3/44.0/36.3 | 3.3/15.0/3.3 | 16.8/36.0/16.8 |
| 300 | 37.1/49.0/37.1 | 34.2 | 16.8/28.0/16.8 | 0.5/14.0/0.5 | 18.3/38.0/18.3 | 35.1/43.0/35.1 | -1.5/10.0/-1.5 | 15.3/31.0/15.3 |
| 350 | 36.1/48.0/36.1 | 37.1 | 16.3/27.5/16.3 | -3.8/9.0/-3.8 | 16.9/37.0/16.9 | 34.1/41.0/34.1 | -5.8/7.0/-5.8 | 13.9/30.0/13.9 |
| 400 | 35.3/47.0/35.3 | 40.0 | 15.9/27.0/15.9 | -7.9/7.0/-7.9 | 15.8/36.0/15.8 | 33.3/40.0/33.3 | -9.9/3.0/-9.9 | 12.8/29.0/12.8 |
| 450 | 34.5/47.0/34.5 | 46.3 | 15.5/26.5/15.5 | -10.5/6.0/-10.5 | 14.7/35.0/14.7 | 32.5/39.0/32.5 | -12.5/2.0/-12.5 | 11.7/27.5/11.7 |
| 500 | 33.8/47.0/33.8 | 45.3 | 15.2/26.0/15.2 | -15.3/5.0/-15.3 | 13.8/34.0/13.8 | 31.8/38.0/31.8 | -17.3/0.0/-17.3 | 10.8/27.0/10.8 |
| 625 | 32.4/45.0/32.4 | 51.1 | 14.5/25.0/14.5 | -23.1/1.0/-23.1 | 11.8/33.0/11.8 | 30.4/37.0/30.4 | -25.1/-3.9/-25.1 | 8.8/26.0/8.8 |
◎ U/FTP & S/FTP Cat 6A Transmission Properties:
| FREQ (MHz) | NEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value |
IL (dB/100m) |
RL (dB/100m) Minimum Value/ Typical Value/ Standard Value |
ACR (dB/100m) Minimum Value/ Typical Value/ Standard Value |
ELFEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value |
PSNEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value |
PSACR (dB/100m) Minimum Value/ Typical Value/ Standard Value |
PSELFEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value |
| 1 | 87.0/90.0/74.3 | 2.0 | 20.0/28.0/20.0 | 85.0/88.0/72.2 | 73.8/75.0/67.8 | 85.0/88.0/72.3 | 83.0/86.0/70.2 | 70.8/72.0/64.8 |
| 4 | 80.0/90.0/65.3 | 3.7 | 23.0/30.0/23.0 | 76.0/86.0/61.4 | 61.8/75.0/55.8 | 78.0/88.0/63.3 | 74.0/84.0/59.5 | 58.0/72.0/52.8 |
| 8 | 80.0/90.0/60.8 | 5.3 | 24.5/33.0/24.5 | 74.7/84.0/55.4 | 55.7/75.0/49.7 | 78.0/88.0/58.8 | 72.7/82.0/53.5 | 52.7/72.0/46.7 |
| 10 | 80.0/90.0/59.3 | 5.9 | 25.0/36.0/25.0 | 74.0/84.0/53.3 | 53.8/74.0/47.8 | 78.0/88.0/57.3 | 72.0/82.0/51.3 | 50.8/71.0/44.8 |
| 16 | 80.0/90.0/56.2 | 7.6 | 25.0/36.0/25.0 | 72.4/82.0/48.6 | 49.7/70.0/43.7 | 78.0/88.0/54.2 | 70.4/80.0/46.6 | 46.7/67.0/40.7 |
| 20 | 80.0/90.0/54.8 | 8.3 | 25.0/36.0/25.0 | 71.5/81.0/46.3 | 47.8/68.0/41.8 | 78.0/88.0/52.8 | 69.5/79.0/44.3 | 44.8/65.0/38.8 |
| 25 | 80.0/90.0/53.3 | 9.5 | 24.3/35.0/24.3 | 70.5/80.0/43.8 | 45.8/68.0/39.8 | 78.0/88.0/51.3 | 68.5/78.0/41.8 | 42.8/65.0/36.8 |
| 31.25 | 80.0/90.0/51.9 | 10.4 | 23.6/34.0/23.6 | 69.3/79.0/41.1 | 43.9/64.0/37.9 | 78.0/88.0/49.9 | 67.3/77.0/39.1 | 40.9/61.0/34.9 |
| 62.5 | 75.3/90.0/47.4 | 14.9 | 21.5/33.5/21.5 | 59.9/74.0/31.9 | 37.9/58.0/31.9 | 69.1/83.0/45.4 | 57.9/72.0/29.9 | 34.9/55.0/28.9 |
| 100 | 71.1/85.0/44.3 | 19.0 | 20.1/33.0/20.1 | 51.3/65.0/24.4 | 33.8/54.0/27.8 | 69.1/83.0/42.3 | 49.3/63.0/22.4 | 30.8/51.0/24.8 |
| 200 | 71.1/85.0/39.8 | 27.4 | 18.0/31.0/18.0 | 42.1/56.0/10.6 | 27.8/51.0/21.8 | 69.1/83.0/37.8 | 40.1/54.0/8.6 | 24.8/48.0/18.8 |
| 250 | 71.1/85.0/38.3 | 31.0 | 17.3/30.5/17.3 | 38.2/52.0/5.3 | 25.8/48.0/19.8 | 61.7/78.0/36.3 | 36.2/50.0/3.3 | 22.8/45.0/16.8 |
| 300 | 63.7/80.0/37.1 | 34.2 | 16.8/29.0/16.8 | 27.3/43.0/0.5 | 24.3/45.0/18.3 | 61.7/78.0/35.1 | 25.3/41.0/-1.5 | 21.2/42.0/15.3 |
| 350 | 63.7/80.0/36.1 | 37.1 | 16.3/28.0/16.3 | 23.9/40.0/-3.8 | 23.9/45.0/16.9 | 61.7/78.0/34.1 | 21.9/38.0/-5.8 | 19.9/42.0/13.9 |
| 400 | 63.7/80.0/35.3 | 40.0 | 15.9/27.0/15.9 | 20.7/37.0/-7.9 | 21.8/45.0/15.8 | 61.7/78.0/33.3 | 18.7/35.0/-9.9 | 19.7/42.0/12.8 |
| 450 | 63.7/80.0/34.5 | 46.3 | 15.5/26.5/15.5 | 17.4/33.0/-10.5 | 20.5/42.0/14.7 | 61.7/78.0/32.5 | 15.4/31.0/-12.5 | 17.5/39.0/11.7 |
| 500 | 63.7/80.0/33.8 | 45.3 | 15.2/26.0/15.2 | 14.8/31.0/-15.3 | 19.8/42.0/13.8 | 61.7/78.0/31.8 | 12.8/29.0/-17.3 | 16.8/39.0/10.8 |
| 625 | 60.0/70.0/32.4 | 51.1 | 14.5/25.0/14.5 | 5.5/15.5/-23.1 | 18.8/42.0/11.8 | 58.0/68.0/30.4 | 9.9/26.0/-25.1 | 16.0/39.0/8.8 |
Ordering Information :
| Model | Product Description |
| AD-BC-CAT6AUTP4PCM23 | U/UTP Cat6A 4 Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT6AFTP4PCM23 | F/UTP Cat6A 4 Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT6AS-FTP4PCM23 | SF/UTP Cat6A 4 Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT6ASTP4PCM23 | U/FTP Cat6A 4 Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT6ASFTP4PCM23 | S/FTP Cat6A 4 Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT6AUTP4PLH23 | U/UTP Cat6A 4 Pairs, LSZH Grade (IEC 60332-1) |
| AD-BC-CAT6AFTP4PLH23 | F/UTP Cat6A 4 Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT6ASTP4PLH23 | U/FTP Cat6A 4 Pairs, LSZH Grade (IEC60332-1 ) |
| AD-BC-CAT6AUTP4PFRLH23 | U/UTP Cat6A 4 Pairs, LSFROH Grade (IEC60332-1 & IEC60332-3C) |
| AD-BC-CAT6AS-FTP4PFRLH23 | SF/UTP Cat6A 4 Pairs, LSFROH Grade (IEC60332-1 & IEC60332-3C) |
| AD-BC-CAT6ASFTP4PFRLH23 | S/FTP Cat6A 4 Pairs, LSFROH Grade (IEC60332-1 & IEC60332-3C) |
| AD-BC-CAT6AUTP4PPE23 | Outdoor U/UTP Cat6A 4 Pairs (Water-blocking /UV Resistant) |
| AD-BC-CAT6AFTP4PPE23 | Outdoor F/UTP Cat6A 4 Pairs (Water-blocking /UV Resistant) |
| AD-BC-CAT6AS-FTP4PPE23 | Outdoor SF/UTP Cat6A 4 Pairs (Water-blocking /UV Resistant) |
| AD-BC-CAT6ASTP4PPE23 | Outdoor U/FTP Cat6A 4 Pairs (Water-blocking /UV Resistant) |
| AD-BC-CAT6ASFTP4PPE23 | Outdoor S/FTP Cat6A 4 Pairs (Water-blocking /UV Resistant) |
