Product Profile


    cat5e u-utp
Product name: Enhanced Catgory 5 Cables

Keywords:
utp cat5e cable, ftp cat5e cables, s-ftp cat5e cables, outdoor utp cat5e,lsoh grade ,4 pairs cables

    Product Picture

  Cat5e F-UTP  ftp cat5e cable  stp cat5e cable    cat5e utp cables

Product Introduction

◎ Applications:

10Base-T, 100Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155Mbps ATM, 622Mbps ATM, 1000Base-T

◎ Standards:

ISO/IEC 11801, ANSI/TIA/EIA-568-B

◎ Product Construction Matrix:

U/UTP

F/UTP

SF/UTP

Conductor

24AWG Solid Plain Copper

24AWG Solid Plain Copper

24AWG Solid Plain Copper

Insulation

PE

PE

PE

Screen

Nil

Overall Aluminum Tape Screen

Overall Aluminum Tape Screen

& Copper Wire Braid

Drain Wire

Nil

1 / 0.5 mm

Nil

Jacket

PE/PVC/LSF/LSZH/LSFROH

PE/PVC/LSF/LSZH

PE/PVC/LSF/LSZH/LSFROH

Remark: PE- Polyethylene; PVC- Polyvinyl Chloride; LSF- Low Smoke & Fume; LSZH- Low Smoke

 Zero Halogen; LSFROH-Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C); PVC

 can be offered in CMX, CM, CMR and CMP grade

◎ Working Frequency:

1-100MHz

◎ Technical Parameters:

☆ Characteristic Impedance: 100±15Ω (1-100MHz)

☆ Nominal Velocity of Propagation (NVP): CMX, CM, CMR,

 LSZH 69%; CMP 72%

☆ Maximum Mutual Capacitance: 5.6 nF/100m

☆ Maximum Capacitance Unbalance: 330 pF/100m

☆ Maximum DC Resistance: 9.38Ω/100m

☆ Maximum Resistance Unbalance: 5%

☆ Maximum Propagation Delay Skew: 30 ns/100m

☆ Maximum Propagation Delay: 536 ns/100m@100MHz

☆ Minimum Bending radius: 10 x Overall Diameter

☆ Voltage Rating: 80V rms

☆ Maximum Pulling Load: 80N

☆ Working Temperature: -5℃ ~+50℃

☆ Storage Temperature: -20℃ ~+60℃

☆ Flame Retardancy: UL 1581 (CM Jacket); UL 1666 (CMR Jacket); UL 910 (CMP Jacket); IEC 60332-1(FRPVC & LSZH Jacket); IEC 60332-1 and IEC 60332-3C (LSFROH Jacket)

◎ Product Certification:

E222756

◎ Product Categories:

Construction

Conductor

Diameter (mm

Diameter Over Insulation

(mm)

Pairs

Screen

Overall

Diameter (mm)

Jacket

U/UTP

0.5/0.51

0.91

4

Nil

5.1

PVC/LSZH

U/UTP

0.5/0.51

0.91

4

Nil

5.5

LSFROH

U/UTP

0.5/0.51

0.91

4

Nil

5.3

PE

F/UTP

0.53

1.00

4

Overall Aluminum Tape Screen

6.3

PVC/LSZH

F/UTP

0.53

1.00

4

Overall Aluminum Tape Screen

6.5

PE

SF/UTP

0.53

1.00

4

Overall Aluminum Tape Screen & Copper Wire Braid

6.6

PVC/LSZH

SF/UTP

0.53

1.00

4

Overall Aluminum Tape Screen & Copper Wire Braid

7.0

LSFROH

SF/UTP

0.53

1.00

4

Overall Aluminum Tape Screen & Copper Wire Braid

6.8

PE

 Product Highlights:

☆ Provide excellent bandwidth beyond 100 MHz.

☆ Meet the strict flame retardancy and environmental requirements in Europe and US.

☆ Different jacket materials available for choice.

☆ Guaranteed ACR Value > 0 dB@200MHz.

☆ Special purpose cables can be offered according to customer request.

☆ Different jacket color options available for choice.

◎ Transmission Properties:

FREQ

(MHz)

NEXT(dB/100m)

Min.Value/

Typical Value/

Standard Value

(dB/100m)
RL





(dB/100m)
Minimum Value/
Typical Value/
Standard Value
ACR
(dB/100m)
Minimum Value/
Typical Value/
Standard Value
ELFEXT
(dB/100m)
Minimum Value/
Typical Value/
Standard Value
PSNEXT
(dB/100m)
Minimum Value/
Typical Value/
Standard Value
PSACR
(dB/100m)
Minimum Value/
Typical Value/
Standard Value
PSELFEXT
(dB/100m)
Minimum Value/
Typical Value/
Standard Value

1

68.3/74.0/65.3

2.0

20.2/26.0/20.2

66.3/72.0/63.3

64.8/69.0/63.8

65.0/71.0/62.3

63.3/69.0/60.3

61.8/66.0/60.8

4

59.3/65.0/56.3

4.1

23.0/29.0/23.0

55.2/60.9/52.2

52.7/57.0/51.7

56.3/62.0/53.3

52.2/57.9/49.2

49.7/54.0/48.7

8

54.8/61.0/51.8

5.8

24.5/30.5/24.5

49.0/55.2/46.0

46.7/51.0/45.7

51.8/58.0/48.8

46.0/52.2/43.0

43.7/48.0/42.7

10

53.3/59.0/50.3

6.5

25.0/31.0/25.0

46.8/52.5/43.8

44.8/49.0/43.8

50.3/56.0/47.3

43.8/49.5/40.8

41.8/46.0/40.8

16

50.3/56.0/47.3

8.2

25.0/31.0/25.0

42.1/47.8/39.1

40.7/45.0/39.7

47.4/53.0/44.3

39.1/44.8/36.1

37.7/42.0/36.7

20

48.8/55.0/45.8

9.3

25.0/31.0/25.0

39.5/45.7/36.5

38.7/43.0/37.7

45.8/52.0/42.8

36.5/42.7/33.5

35.7/40.0/34.7

25

47.3/53.0/44.3

10.4

24.3/30.3/24.3

36.9/42.6/33.9

36.8/41.0/35.8

44.3/50.0/41.3

33.9/39.6/30.9

33.8/38.0/32.8

31.25

45.9/52.0/42.9

11.7

23.6/29.6/23.6

34.2/40.3/31.2

34.9/39.0/33.9

42.9/49.0/39.9

31.2/37.3/28.2

31.9/36.0/30.9

62.5

41.4/47.0/38.4

17.0

21.5/27.5/21.5

24.4/30.0/21.4

28.8/33.0/27.8

38.4/44.0/35.4

21.4/27.0/18.4

25.8/30.0/24.8

100

38.3/44.0/35.3

22.0

20.1/26.1/20.1

16.3/22.0/13.3

24.8/29.0/23.8

35.3/41.0/32.3

13.3/19.0/10.3

21.8/26.0/20.8

155

35.5/41.0/32.5

28.1

18.8/24.8/18.8

7.4/12.9/4.4

20.9/25.0/19.9

32.5/38.0/29.5

4.4/9.9/-1.4

17.9/22.0/16.9

200

33.7/40.0/30.7

32.4

18.0/24.0/18.0

1.3/7.6/-1.7

19.7/24.0/18.7

30.0/37.0/27.7

-1.7/4.6/-4.7

16.7/21.0/15.7

310

32.3/38.0/29.3

41.8

17.3/23.3/17.3

N/A

11.0/15.0/10.0

29.3/35.0/26.3

N/A

14.0/18.0/13.0

350

30.1/36.0/27.1

44.9

17.3/23.3/17.3

N/A

8.1/12.0/7.1

27.1/33.0/24.1

N/A

11.1/15.0/10.1

* Data for 100MHz above are for reference only.

◎ Ordering Information:

Model

Product Description

AD-BC-CAT5EUTP4PCM24

U/UTP Cat5e 4 Pairs, CM Grade (Non-Plenum)

AD-BC-CAT5EFTP4PCM24

F/UTP Cat5e 4 Pairs, CM Grade (Non-Plenum)

AD-BC-CAT5ES-FTP4PCM24

SF/UTP Cat5e 4 Pairs, CM Grade (Non-Plenum)

AD-BC-CAT5EUTP4PLH24

U/UTP Cat5e 4 Pairs, LSZH Grade (IEC60332-1)

AD-BC-CAT5EFTP4PLH24

F/UTP Cat5e 4 Pairs, LSZH Grade (IEC60332-1)

AD-BC-CAT5ES-FTP4PLH24

SF/UTP Cat5e 4 Pairs, LSZH Grade (IEC60332-1)

AD-BC-CAT5EUTP4PFRLH24

U/UTP Cat5e 4 Pairs, LSFROH Grade (IEC60332-1 & IEC60332-3C)

AD-BC-CAT5ES-FTP4PFRLH24

SF/UTP Cat5e 4 Pairs, LSFROH Grade (IEC60332-1 & IEC60332-3C)

AD-BC-CAT5EUTP4PPE24

Outdoor U/UTP Cat5e 4 Pairs (Water Blocking / UV Resistant Grade)

AD-BC-CAT5EFTP4PPE24

Outdoor F/UTP Cat5e 4 Pairs (Water Blocking / UV Resistant Grade)

AD-BC-CAT5ES-FTP4PPE24

Outdoor SF/UTP Cat5e 4 Pairs (Water Blocking / UV Resistant Grade)

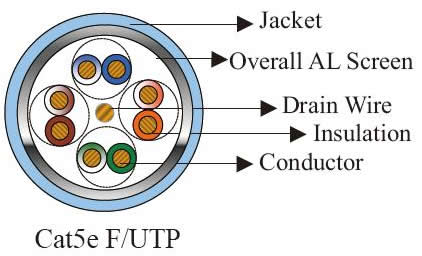

Cat5e F/UTP

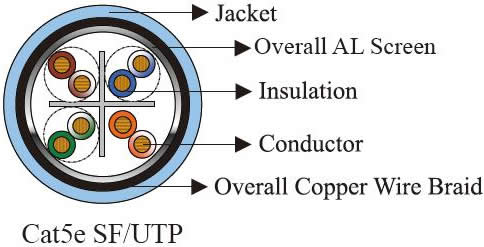

Cat5e SF/UTP

Cat5e F/UTP

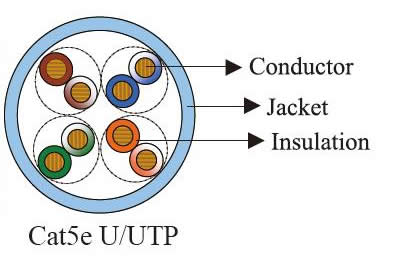

Cat5e U/UTP
