Product Profile


    cat6 cables
Product name: Catgory 6 Cables

Keywords:
cat6 cable, utp cat6 cable, ftp cat6 cable, s-ftp cat6 cable

    Product Picture

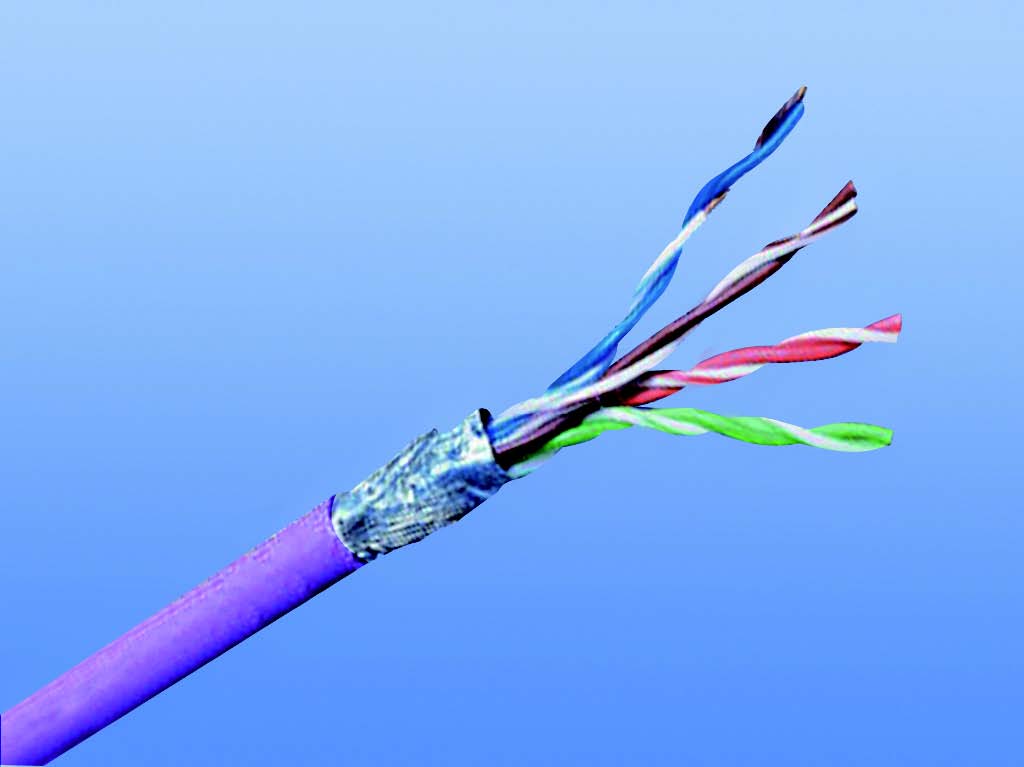

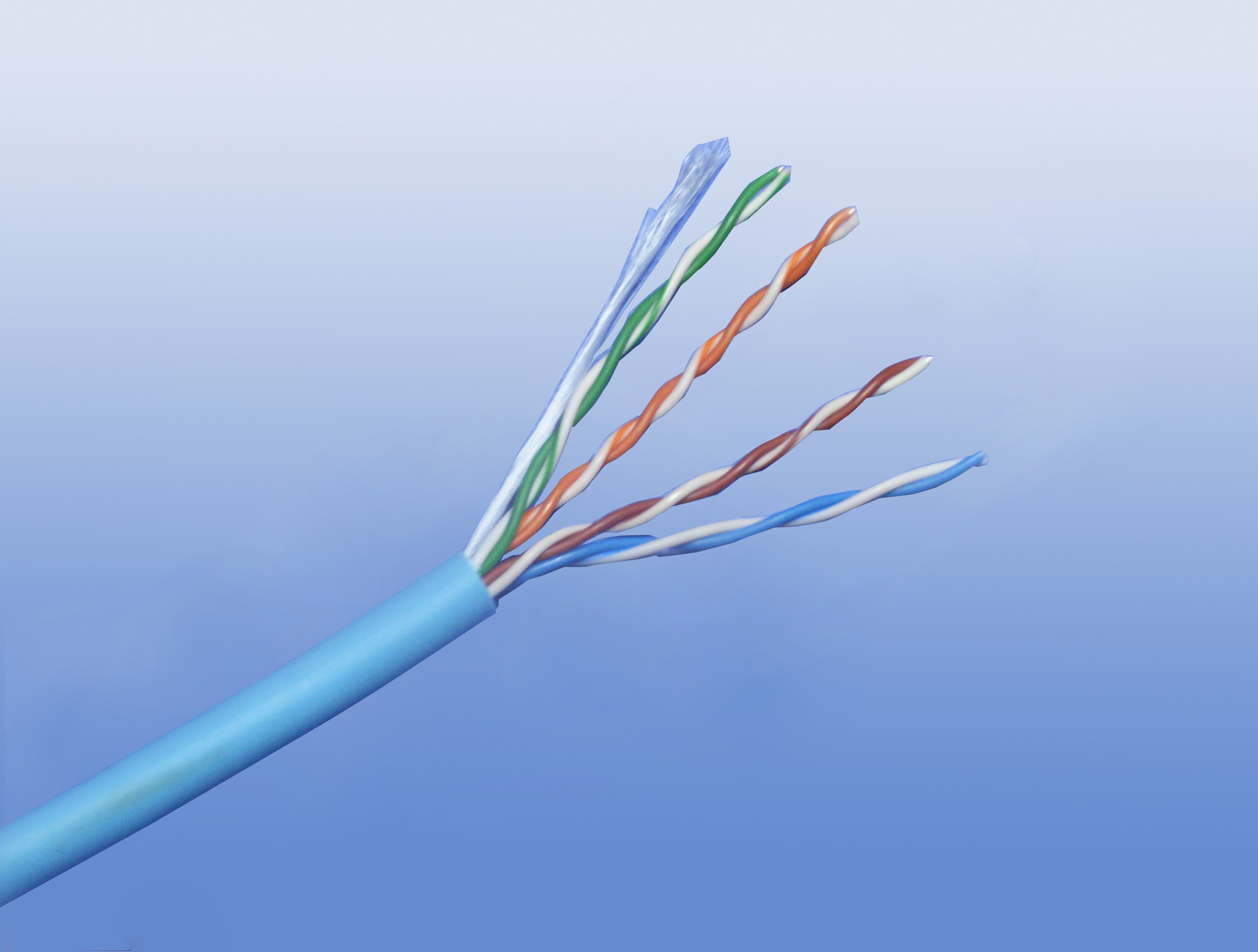

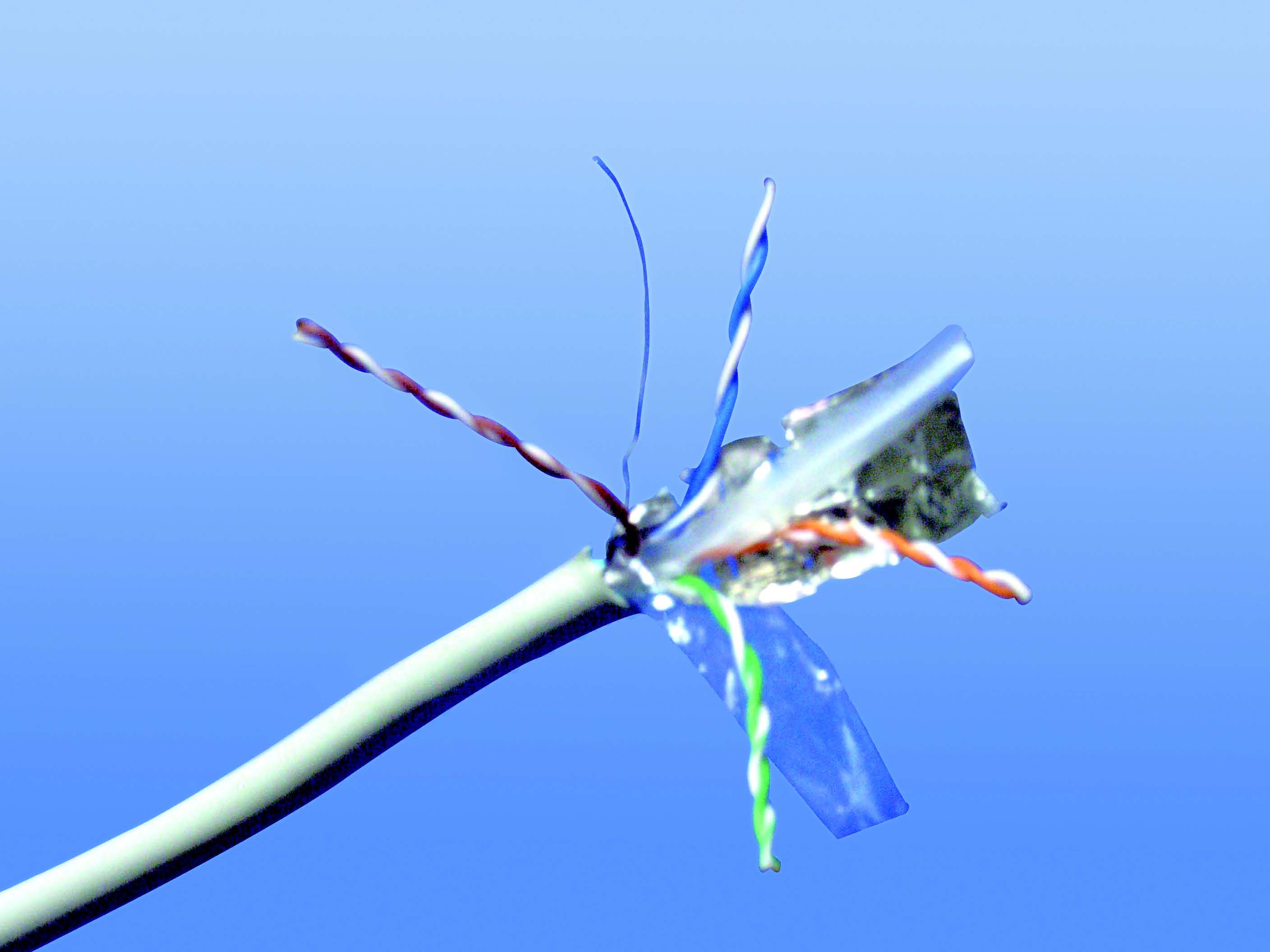

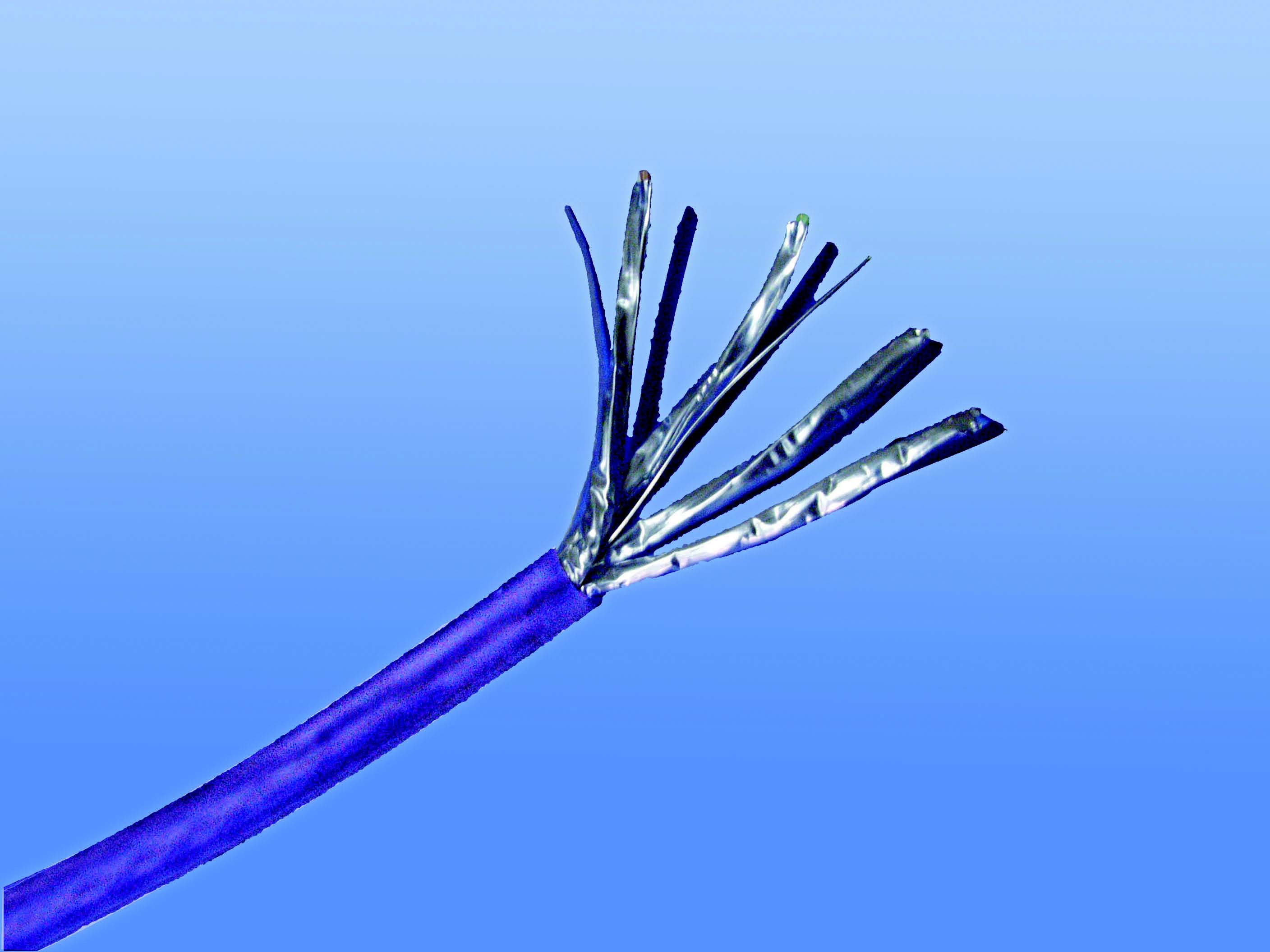

  cat6 utp cable    cat6 ftp cable   cat6 cable  cat6 cable

Product Introduction

◎ Applications:

10Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155MbpsATM, 622 Mbps ATM, 1000Base-T, 10GBase-T

◎ Standards:

ISO / IEC 11801, EN50173, TIA / EIA 568-B

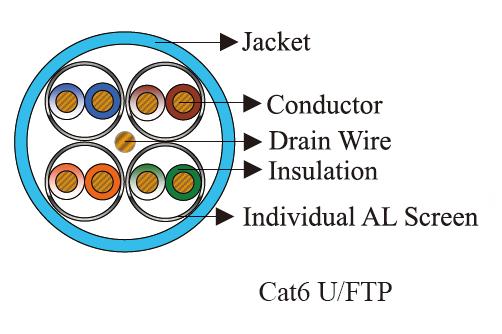

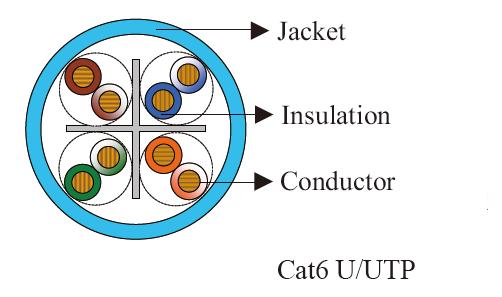

◎ Product Construction Matrix:

U/UTP

F/UTP

U/FTP

SF/UTP

S/FTP

Conductor

23AWG Solid Plain Copper

23AWG Solid Plain Copper

23AWG Solid Plain Copper

23AWG Solid Plain Copper

23AWG Solid Plain Copper

Insulation

PE

PE

PE

PE

PE

Screen

Nil

Overall Aluminum Tape Screen

Individual

Aluminum Tape Screen

Overall Aluminum Tape Screen

& Copper Wire Braid

Individual Al Tape Screen& Copper Wire Braid

Drain Wire

Nil

1/0.5mm

1/0.5mm

Nil

Nil

Outer Sheath

PE/PVC/LSF/LSZH/LSFROH

PE/PVC/LSF/LSZH

PE/PVC/LSF/LSZH/LSFROH

Remark: PE- Polyethylene; PVC- Polyvinyl Chloride; LSF- Low Smoke & Fume; LSZH- Low Smoke Zero Halogen; LSFROH-Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C); PVC can be classified as CMX, CM, CMR and CMP

◎ Working Frequency:

1-250MHz

◎ Technical Parameters:

☆ Characteristic Impedance: 100±15Ω (1-250MHz)

☆ Nominal Velocity of Propagation (NVP): CMX, CM, CMR, LSZH 69%; CMP 72%

☆ Maximum Mutual Capacitance: 5.6nF/100m

☆ Maximum Capacitance Unbalance: 330pF/100m

☆ Maximum DC Resistance: 7.5Ω/100m

☆ Maximum Resistance Unbalance: 3%

☆ Maximum Propagation Delay Skew: 30ns/100m (1-125MHz)

☆ Maximum Propagation Delay: 536 ns/100m@100MHz

☆ Minimum Bending radius: 10 x Overall Diameter

☆ Maximum Pulling load: 80N

☆ Working Temperature: -20℃ ~ +60℃

☆ Storage Temperature: -5℃ ~ +50℃

☆ Flame Retardancy:

UL 1581 (CM Jacket); UL 1666 (CMR Jacket)

UL 910 (CMP Jacket); IEC 60332-1 (FRPVC & LSZH Jacket)

IEC 60332-1 & IEC 60332-3C (LSFROH Jacket)

◎ Product Certification:

E222756

◎ Product Categories :

Construction

Conductor

Diameter

(mm)

Diameter Over

Insulation (mm)

Pairs

Screen

Overall

Diameter

(mm)

Outer Sheath

U/UTP

0.57/0.58

1.02

4

Nil

6.0

PVC/LSZH

U/UTP

0.57/0.58

1.02

4

Nil

6.5

LSFROH

U/UTP

0.57/0.58

1.02

4

Nil

6.2

PE

F/UTP

0.57/0.58

1.02

4

Overall Aluminum Tape Screen

6.3

PVC/LSZH

F/UTP

0.57/0.58

1.02

4

Overall Aluminum Tape Screen

6.5

PE

U/FTP

0.57/0.58

1.02

4

Individual Aluminum Tape Screen

7.5

PVC/LSZH

SF/UTP

0.57/0.58

1.02

4

Overall Aluminum Tape Screen & Copper Wire Braid

6.6

PVC/LSZH

SF/UTP

0.57/0.58

1.02

4

Overall Aluminum Tape Screen & Copper Wire Braid

7.1

LSFROH

S/FTP

0.57/0.58

1.02

4

Individual Aluminum Tape Screen & Overall Copper Wire Braid

8.0

PVC/LSZH

S/FTP

0.57/0.58

1.02

4

Individual Aluminum Tape Screen & Overall Copper Wire Braid

8.4

LSFROH

◎ Product Highlights:

☆ Provide excellent bandwidth beyond 250 MHz.

☆ Support 10 Gigabit Ethernet application.

☆ Meet the strict flame retardancy and environmental requirements in Europe and US.

☆ Different jacket materials available for choice.

☆ Guaranteed ACR Value > 0dB@250MHz.

☆ Special purpose cables can be offered according to customer request.

☆ Different jacket color options available for choice.



◎ Transmission Properties:

FREQ

(MHz)

NEXT(dB/100m)

Min.Value/

Typical Value/

Standard Value

IL

(dB/100m)

RL (dB)

Min.Value/

Typical Value/

Standard Value

ACR (dB/100m)

Min.Value/

Typical Value/

Standard Value

ELFEXT

(dB/100m)

Min.Value/

Typical Value/

Standard Value

PSNEXT

(dB/100m)

Min.Value/

Typical Value/

Standard Value

PSACR

(dB/100m)

Min.Value/

Typical Value/

Standard Value

PSELFEXT

(dB/100m)

Min.Value/

Typical Value/

Standard Value

1

77.3/87.0/74.3

2.0

20.0/21.5/20.0

75.2/85.0/72.2

68.8/80.0/67.8

75.3/85.0/72.3

73.2/83.0/70.2

65.8/70.0/64.8

4

68.3/77.0/65.3

3.8

23.0/24.7/23.0

64.4/73.0/61.4

56.8/66.0/55.8

66.3/74.0/63.3

62.5/71.0/59.5

53.8/63.0/52.8

8

63.8/72.0/60.8

5.3

24.5/25.5/24.5

58.4/67.0/55.4

50.7/61.0/49.7

61.8/70.0/58.8

56.5/65.0/53.5

47.7/58.0/46.7

10

62.3/70.0/59.3

6.0

25.0/28.0/25.0

56.3/64.0/53.3

48.8/57.0/47.8

60.3/68.0/57.3

54.3/62.0/51.3

45.8/54.0/44.8

16

59.2/66.0/56.2

7.6

25.0/28.0/25.0

51.6/59.0/48.6

44.7/52.0/43.7

57.2/64.0/54.2

49.6/57.0/46.6

41.7/49.0/40.7

20

57.8/65.0/54.8

8.5

25.0/28.0/25.0

49.3/57.0/46.3

42.8/50.0/41.8

55.8/63.0/52.8

47.3/55.0/44.3

39.8/47.0/38.8

25

56.3/63.0/53.3

9.5

24.3/27.0/24.3

46.8/5 4.0/43.8

40.8/47.0/39.8

54.3/61.0/51.3

44.8/52.0/41.8

37.8/44.0/36.8

31.25

54.9/61.0/51.9

10.7

23.6/26.5/23.6

44.1/51.0/41.1

38.9/45.0/37.9

52.9/59.0/49.9

42.1/49.0/39.1

35.9/42.0/34.9

62.5

50.4/57.0/47.4

15.4

21.5/24.6/21.5

34.9/42.0/31.9

32.9/38.0/31.9

48.4/55.0/45.4

32.9/40.0/29.9

29.9/35.0/28.9

100

47.3/53.0/44.3

19.8

20.1/23.7/20.1

27.4/33.0/24.4

28.8/34.0/27.8

45.3/51.0/42.3

25.4/31.0/22.4

25.8/31.0/24.8

200

42.8/48.0/39.8

29.0

18.0/22.2/18.0

13.6/21.0/10.6

22.8/27.0/21.8

40.8/46.0/37.8

11.6/19.0/8.6

19.8/24.0/18.8

250

41.3/46.0/38.3

32.8

17.3/21.6/17.3

8.3/14.0/5.3

20.8/24.0/19.8

39.3/44.0/36.3

6.3/12.0/3.3

17.8/21.0/16.8

300

37.1/45.0/37.1

36.4

16.8/20.7/16.8

0.5/11.0/0.5

18.3/23.0/18.3

35.1/43.0/35.1

-1.5/9.0/-1.5

15.3/20.0/15.3

350

36.1/44.0/36.1

39.8

16.3/20.3/16.3

-3.8/6.6/-3.8

16.9/21.0/16.9

34.1/42.0/34.1

-5.8/4.6/-5.8

13.9/18.0/13.9

400

35.3/43.0/35.3

43.0

15.9/16.8/15.9

-7.9/2.6/-7.9

15.8/20.0/15.8

33.3/41.0/33.3

-9.9/0.6/-9.9

12.8/17.0/12.8

450

34.5/42.0/34.5

46.3

15.5/16.5/15.5

-10.5/-1.1/-10.5

14.7/18.0/14.7

32.5/40.0/32.5

-12.5/-3.1/-12.5

11.7/15.0/11.7

500

33.8/41.0/33.8

48.9

15.2/16.1/15.2

-15.3/-6.2/-15.3

13.8/18.0/13.8

31.8/39.0/31.8

-17.3/-8.2/-17.3

10.8/15.0/10.8

550

33.2/41.0/33.2

51.8

14.9/15.7/14.9

-18.6/-12.0/-18.6

12.9/17.0/12.9

31.2/39.0/31.2

-20.6/-14.0/-20.6

9.9/13.0/9.9

600

32.4/33.0/32.4

54.5

14.7/15.0/14.7

-21.9/-21.0/-21.9

12.2/14.0/12.2

30.6/31.0/30.6

-23.9/-23.0/-23.9

9.2/11.0/9.2

* Data for 250MHz above are for reference only.



Ordering Information :

Model

Product Description

AD-BC-CAT6UTP4PCM23

U/UTP Cat6 4Pairs, CM Grade (Non-Plenum)

AD-BC-CAT6FTP4PCM23

F/UTP Cat6 4Pairs, CM Grade (Non-Plenum)

AD-BC-CAT6S-FTP4PCM23

SF/UTP Cat6 4Pairs, CM Grade (Non-Plenum)

AD-BC-CAT6STP4PCM23

U/FTP Cat6 4Pairs, CM Grade (Non-Plenum)

AD-BC-CAT6SFTP4PCM23

SF/UTP Cat6 4Pairs, CM Grade (Non-Plenum)

AD-BC-CAT6UTP4PLH23

U/UTP Cat6 4Pairs, LSZH Grade (IEC60332-1)

AD-BC-CAT6FTP4PLH23

F/UTP Cat6 4Pairs, LSZH Grade (IEC60332-1)

AD-BC-CAT6STP4PLH23

U/FTP Cat6 4Pairs, LSZH Grade (IEC60332-1)

AD-BC-CAT6UTP4PFRLH23

UTP Cat6 4Pairs, LSFROH Grade (IEC60332-1&IEC60332-3C)

AD-BC-CAT6S-FTP4PFRLH23

SF/UTP Cat6 4Pairs, LSFROH Grade (IEC60332-1&IEC60332-3C)

AD-BC-CAT6SFTP4PFRLH23

S/FTP Cat6 4Pairs, LSFROH Grade (IEC60332-1&IEC60332-3C )

AD-BC-CAT6UTP4PPE23

Outdoor U/UTP Cat6 4Pairs (Water Blocking /UV Resistant)

AD-BC-CAT6FTP4PPE23

Outdoor F/UTP Cat6 4Pairs (Water Blocking /UV Resistant)

AD-BC-CAT6S-FTP4PPE23

Outdoor SF/UTP Cat6 4Pairs (Water Blocking /UV Resistant)

AD-BC-CAT6STP4PPE23

Outdoor STP Cat6 4 Pairs (Water Blocking /UV Resistant)

AD-BC-CAT6SFTP4PPE23

Outdoor S/FTP Cat6 4 Pairs (Water Blocking /UV Resistant)


Category 6 ———250MHZ
Category 6E ———550MHZ
Category 6E ———600MHZ

  utp cat 6 cable     ftp cat 6 cable   sftp cat 6 cable


UTP Cat6 cables
FTP Cat6 cables
S-FTP Cat6 cables
