Product Profile


    Addison voice jack
Product name:Voice Jacks

Keywords: Addison Voice Jacks

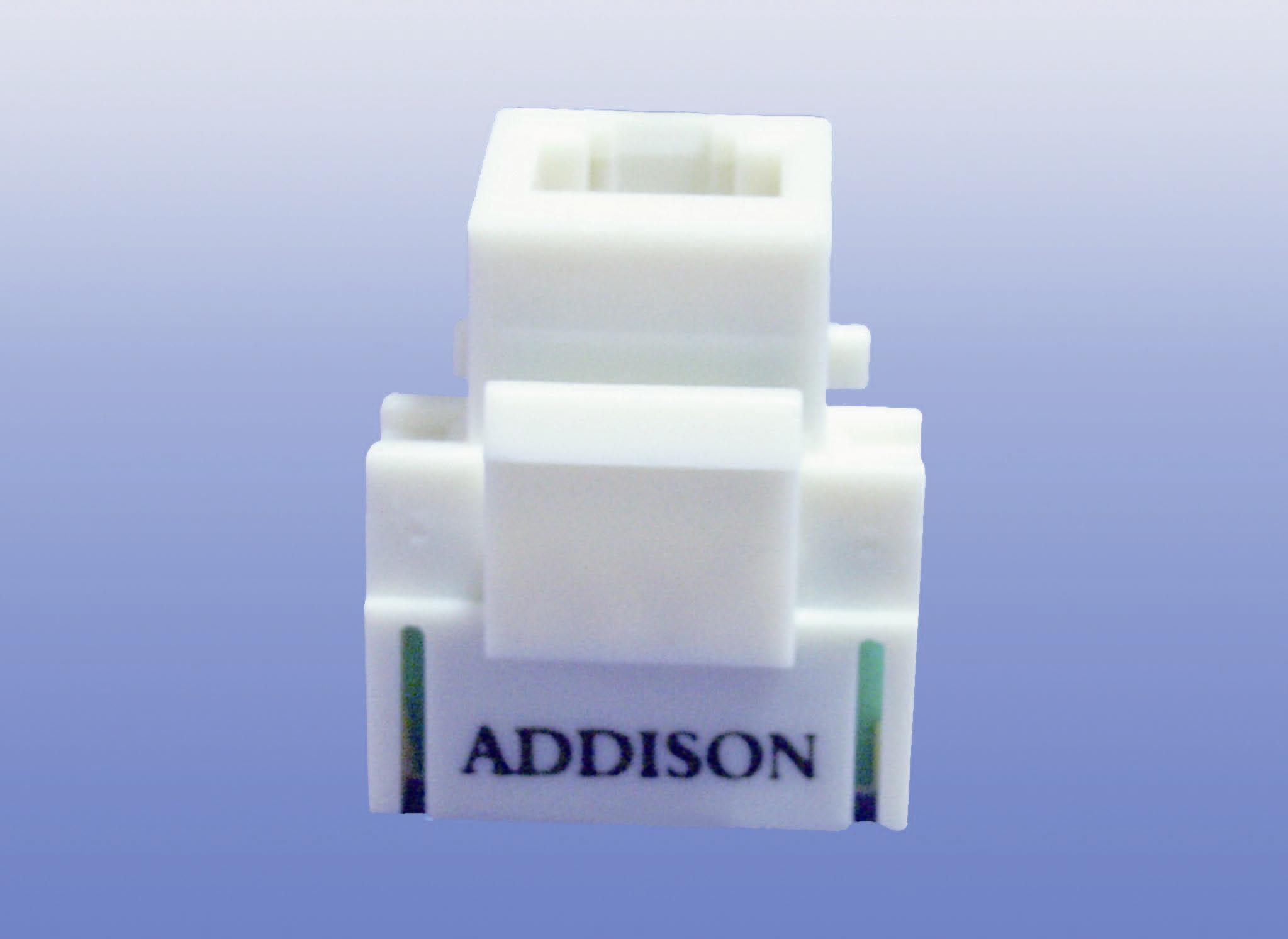

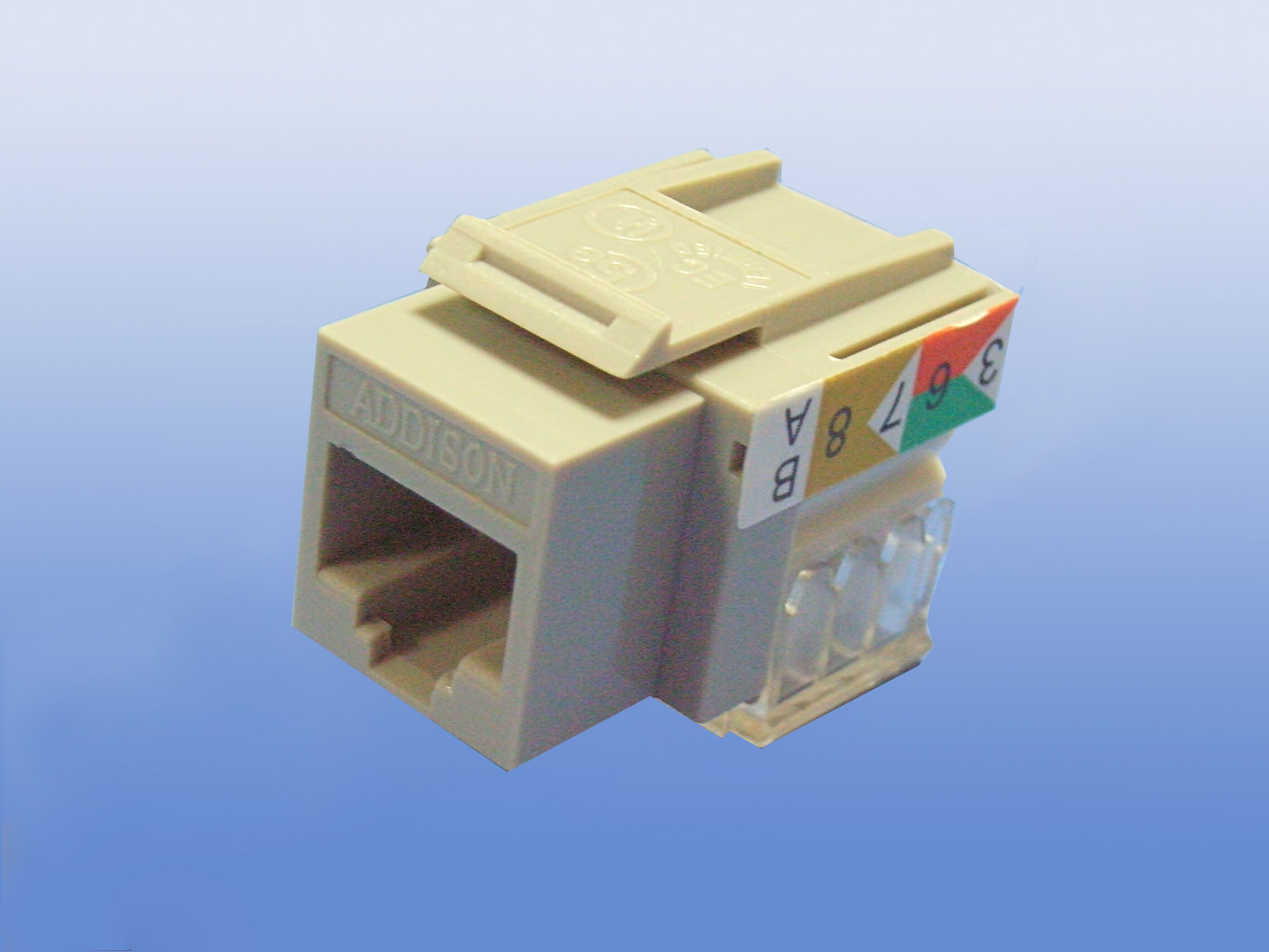

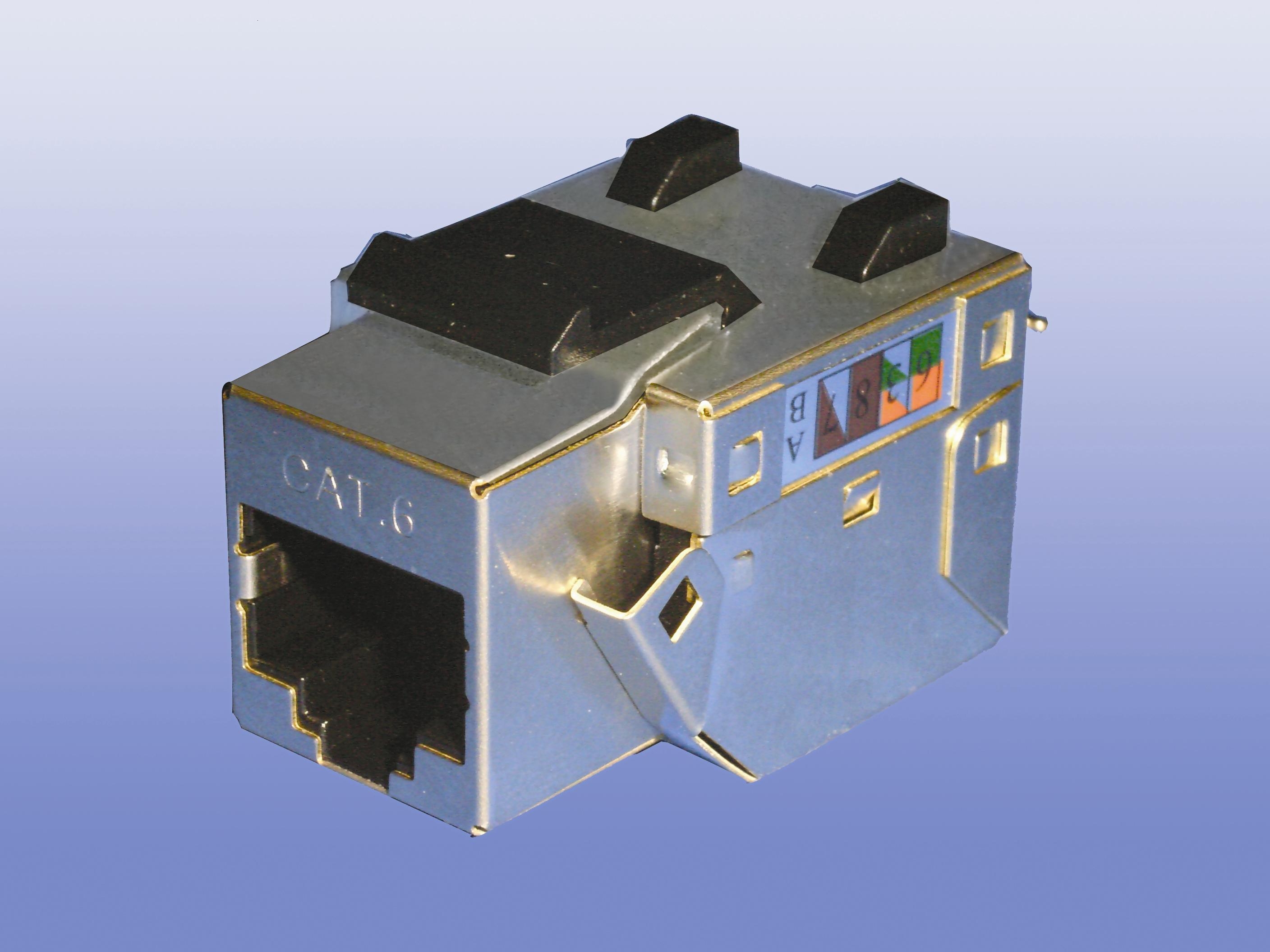

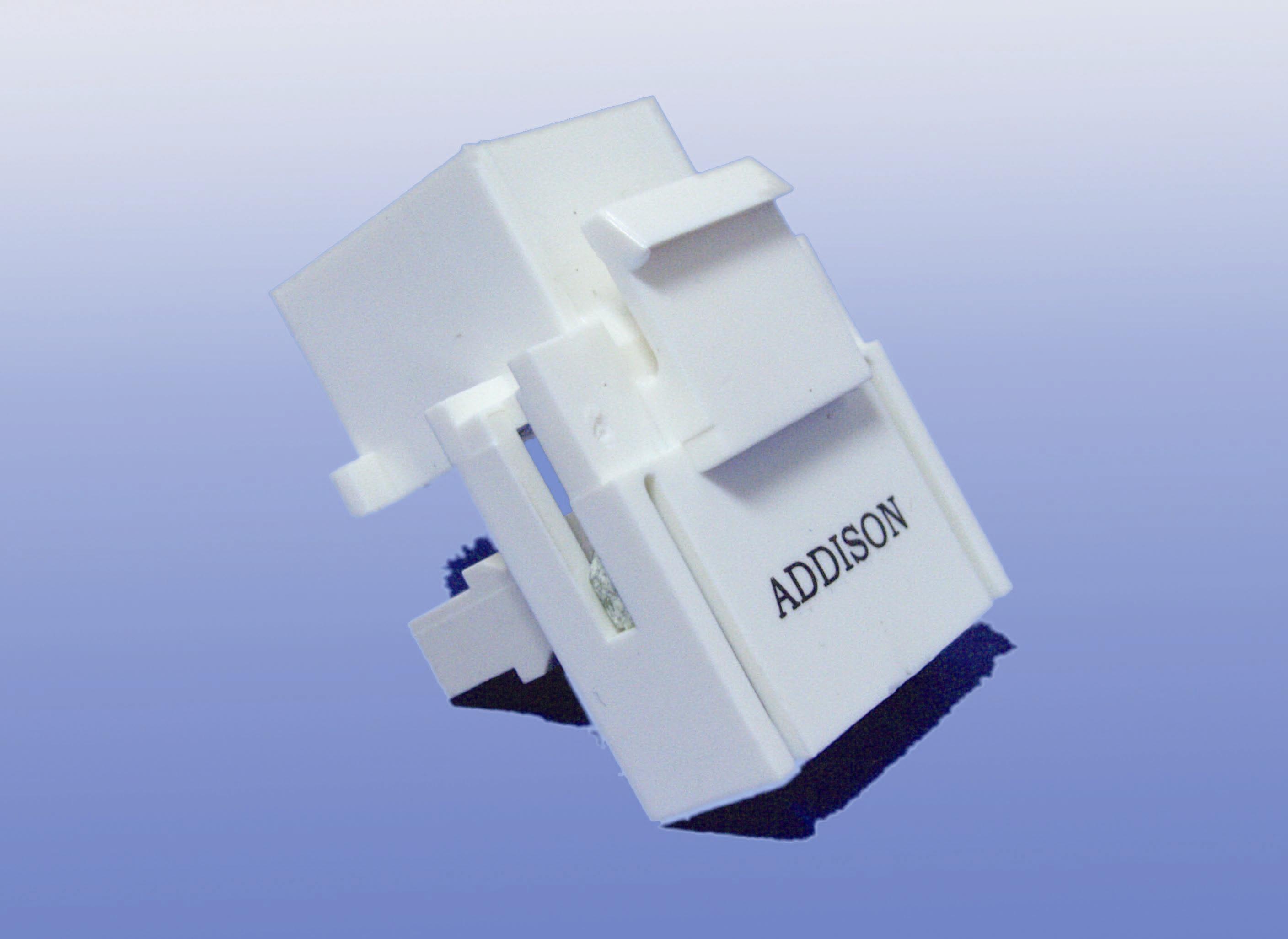

    Product Picture

  sound keystone jacks  Voice,8P8C, 90°C, Shielded T568A/B Wiring   ANSI/TIA 568-B, ISO/IEC 11801 and EN 50173  1,000VAC RMS @ 60Hz/1 min Twists are maintained to within 1/2'' (12.7mm)   sound jacks  voice keystone jacks

Product Introduction
Voice Jack Unshielded & Shielded Versions
Product characteristic:
Significant margin over ANSI/TIA 568-B, ISO/IEC 11801 and EN 50173.
Twists are maintained to within 1/2'' (12.7mm)
Work in standard keystone jack opening(0.58'' X 0.78'' or 14.732mm x 20.066mm).
Product Certification: E223921
Physics/Electrical characteristic:
UL-94V high-impact, fire-retardant ABS Material.
Beryllium copper contacts for superior connectivity, with 100u " nickel baseboard furnished. with 50u" gold plating.
Supports 22 -26AWG wire gage.
Plug retention force: 30 lb. (minimum)
Plug & keystone jack contact force 100 g.
Insertion life cycle: 1,000 cycles(minimum)/I.D.C 250 cycles(minimum).
Insulation Resistance: 500M .
Current rating: 1.5 Amps.
DC Resistance: Max.0.1M .
Dielectric Withstand Voltage: 1,000VAC RMS @ 60Hz/1 min .
Operating temperature: -10 - -60°C.
Storage temperature: -40 - -70°C .

UL-94V high-impact, fire-retardant ABS Material.

Beryllium copper contacts for superior connectivity, with 100u

Electrical specification parameter:



FREQ
(MHZ)

ATTN
(db/100m)

NEXT Minimum Value/Standard Value
(db/100m)

ELFEXT Minimum Value/Standard Value
(db/100m)

RETURN LOSS Minimum Value/Standard Value
(db)

1

0.1

85.0/65.0

80.0/65.0

52.0/30.0

4

0.1

75.0/65.0

71.0/63.1

50.0/30.0

8

0.1

68.0/64.9

66.0/57.0

46.0/30.0

10

0.1

66.0/63.0

64.0/55.1

44.0/30.0

16

0.2

62.0/58.9

60.0/51.0

40.0/30.0

Product characteristic



Full seal design ensures reliable termination and stability.
Supplied with color coded dust cover for dust and dampness protection.
IDC contact design eliminates need to strip individual conductors and ensures reliable termination .



Ordering information:




Part No.

Description

AD-KM-C5E-A/B-XX

CAT5e Unshielded T568A/B Keystone Jack

AD-KM-C5EU-A/B-XX

CAT5e Unshielded T568A/B Tooless Keystone Jack

AD-KM-C5ES-A/B-XX

CAT5e Shielded T568A/B Keystone Jack

AD-KM-C5ESU-A/B-XX

CAT5e Shielded T568A/B Tooless Keystone Jack

AD-KM-C6-A/B-XX

CAT6 Unshielded T568A/B Keystone Jack

AD-KM-C6U-A/B-XX

CAT6 Unshielded T568A/B Tooless Keystone Jack

AD-KM-C6S-A/B-XX

CAT6 Shielded T568A/B Keystone Jack

AD-KM-C6SU-A/B-XX

CAT6 Shielded T568A/B Tooless Keystone Jack

AD-KM-C6A-A/B-XX

CAT6A Unshielded T568A/B Keystone Jack

AD-KM-C6AS-A/B-XX

CAT6A Shielded T568A/B Keystone Jack

AD-KM-C7S-A/B-XX

CAT7 Shielded T568A/B Keystone Jack

AD-TM-90-XX

Shielded T568A/B Keystone Voice Jack





XX is the color code:



BK= black RD= red GN= green YL= yellow BL= blue color

WH= white OR= orange GY= gray IV= white
