Product name: Compact loose Central Tube Optic Fibre Cables

Keywords: Addison Compact loose Central Tube Optic Fibre Cables

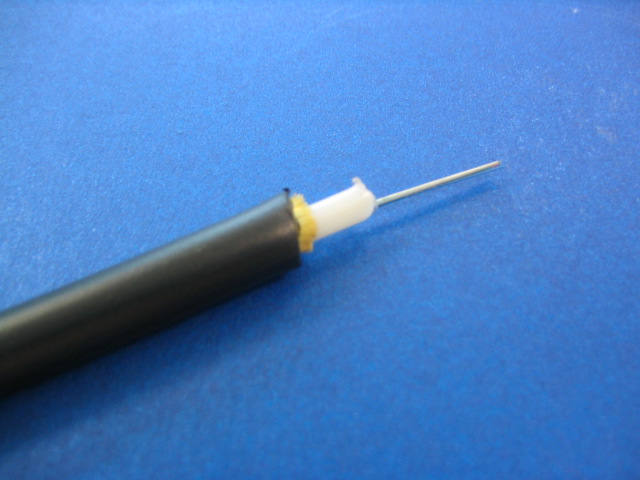

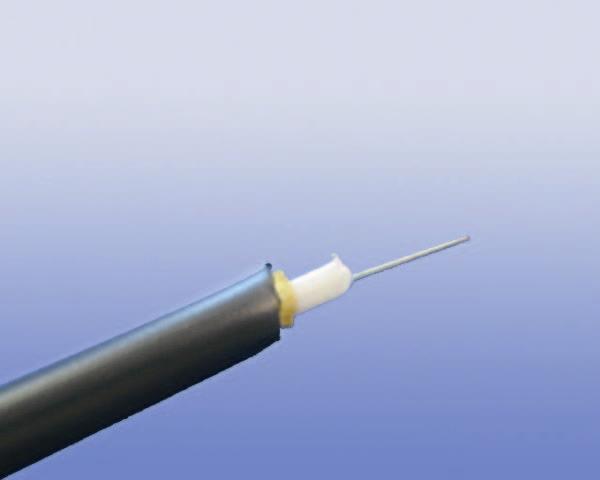

    Product Picture



Product Introduction
Applications
Long Distance Outerside Telephone/CATV/Data Communications.
Installations
Installed in Duct,Self Supporting(Figure 8 Self Supporting or ADSS
all Dielectric Self Supporting),Direct Burial(with Armouring).
Constructions:
The cable consists of a single tube containing 2 up to 24 fibers , which is filled with water-blocking gel.When the cable contains more than 12 fibers, they are divided in two groups.A colored thread identifies each group.Physical protection and tensile strength are provided by aramid yarn or fiberglass wound around the tube or you can select PE or LSOH jacket. A ripcord is located under the jacket to facilitate jacket removal.
Physical Characteristics

Maximum Transmission Distance:6km (Single Mode) 0.3km(Multi mode)
Maxiimum P ulling Load :Short Term Installation:1500N
Long Term Installation:900N
Maximum Compressive Load:3.3mm Loose Tube Diameter - 3000N ;4.5mm Loose Tube Diameter:5000N.
Minimum Bending Radius:

Short Term Installation: 20xOD;

Long Term Installation:

10xOD(Non Armoured); 20xOD(Armoured).
Twist(Torsion Length):125xOD.
Working Temperature:-20°C ----+70°C (PE Sheath)
Storage Temperature:-40°C-----+70°C (PE Sheath)












Product Highlights

•  Small diameter and li ght weight.
Through the control of the fibre exceed length which is the key technology in optical fibre manufacture ,the fiber cable can achive better pulling load and operating temperature.
Tube Materials are water resistant and can sustain high tension. Being filled with special water blocking gel, the tube can pr ovide water protection for the fibers inside the tube.
Compact construction of the fibre cores can prevent the tight buffer to shrink back. This can help achieve sustain higher tensile stress and better flexibility.

Wide operating temperature range.
Ordering Information

AD-SLA 1 -B 1 -01xC 1 D 1 -E 1 -F 1
A 1 ---Loose Tube Diameter: A-2.1mm;B-2.5mm.
B 1 ---Fiber Type:0-Fibers and copper conductors in cable;1-Two or more fiber types in a cable,Specify fibers by a remark;5-50/125 multi-mode;6-62.5/125 multi-mode;8-NZDS SM fiber per G.655;9-Standard SM fiber per G.652.
C 1 ---NO.of Fibers:1--24.
D 1 ---Jacket Options:P-Polyethylene;V-PVC;H-Halogen-free,Flame-Retardant;R-Corrugated Steel Armoring;J-Dielectric Armoring;K-Aramid Yarns;M-Combined Fiberglass;A-Aluminum Moisture Barrier;T-Anti-Termite Protection;W-Steel Wire Armoring;U-Polyurethane ; Z-Glass Yarn Strength Members.
E 1 ---Cable Core Water-Blocking Options:X-No water-blocking;G-Water-blocking gel;D-Dry water-blocking;M-Mixed Water-Blocking-gel and dry.
F 1 ---Jacket Water-blocking Options (for cables with more than one jacket):X-No water-blocking;G-Water-blocking gel;D-Dry water-blocking
