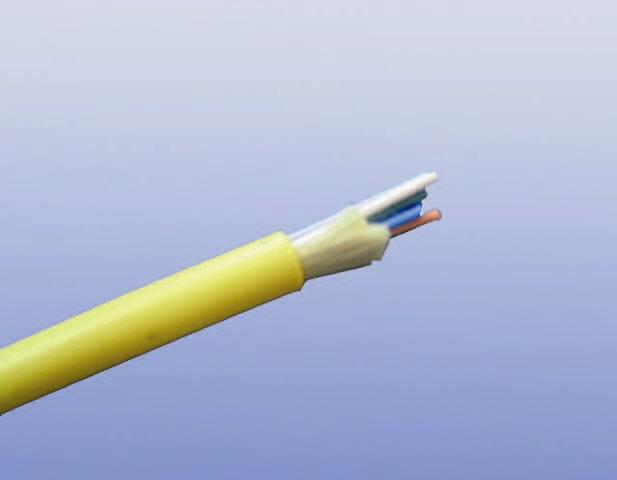

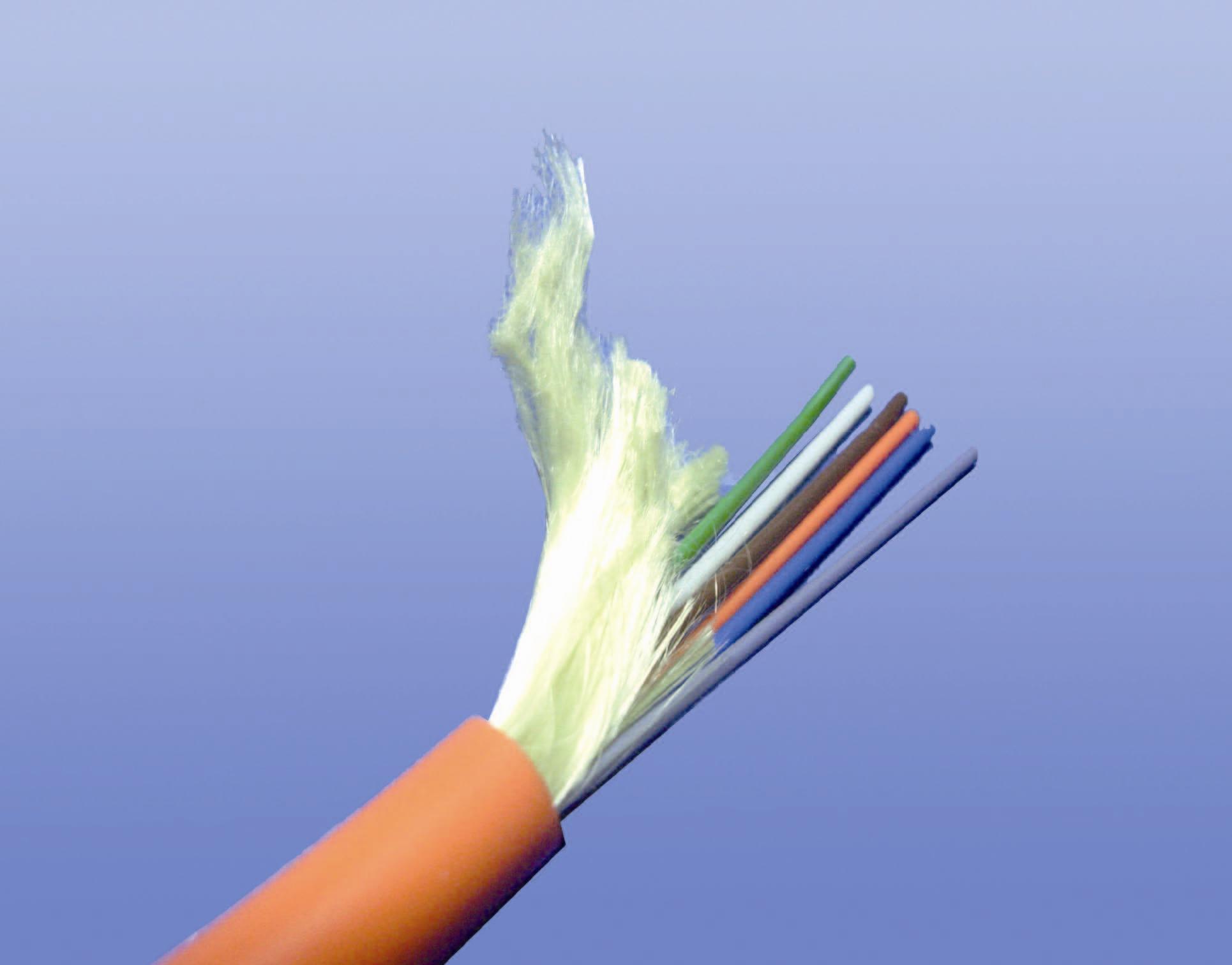

Tight Buffer Distribution Fiber optic Cables |
|
|
|
|
|
Applications:
|
|
|
|
|
|
|
|
|
|
|
|
• Short and medium distance,indoor and protected Environments
• As a riser, plenum ,or general purpose cable Interconnection of distribution boxes, of the distribution boxes and customer equipment, and between floors. |
|
Installations:
|
|
|
|
|
|
|
|
|
|
|
|
Installed along the wall ? the roof interlayer canal indoor. |
|
|
|
|
|
Constructions:
|
|
|
|
|
|
|
|
|
• The cable contains 4 to 72 fibers individually buffered to 0.9 mm in a tight or semi tight construction and coded .The cable structure depends on the
number of fibers:
- the 4 to 12 fiber cables contain individual fibers without
sub-units,
- in the16 to 72 fiber cables the fibers are grouped in the sub-units.
In the 4 to 12 fiber cables ,the individual fibers are stranded and protected by aramid yarn and a PVC or halogen-free flame-retardant jacket.In the 16 to 72 fiber cables the fibers are grouped into sub-units which are laid helically along the cable axis. Each sub-units contains 4 to 6 fibers, aramid yarn and a PVC or halogen-free flame-retardant sheath .The 72-fiber cable consists of twelve sub-units, nine of them are stranded around a central element made of 3 sub-units.
|
|
Physical Characteristics
|
|
|
|
|
|
|
|
|
|
|
|
• Max imum Transmission Distance:
6km(Single Mode) ; 0.3km(Multi mode) .
Max Pulling Load : Short Term Installation:100N;
Long Term Installation:60N.
Minimum Bending Radius:
Short Term Installation:20xOD;
Long Term Installation:
10xOD (NonArmoured); 20xOD(Armoured).
Twist(Torsion Length):125xOD.
Working Temperature:-10°C ----+70°C (PE Sheath)
Storage Temperature:-20°C-----+70°C (PE Sheath) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Highlights
|
|
|
|
|
|
|
|
|
|
• Small diameter and light weight.
The high tension characteristics of the aramid yarn serving as strength member can offer good stability in the transmission performance.
Compact and flexible construction are especially suitable for indoor installations. • Tight Buffer fibres are made from fibre rods with good linearity and low extruding output. By careful calibration of the vacuum pumping equipment, the uniformity of the outer diameter of the tight buffer fibres can be easily achieved with excellent strippability. LSOH jackets can be offered for indoor application for which flame retardancy is required. . • Cutting edge production equipment, good quality materials and optimized process ensure low induced attenuation within the operating temperature range;
Fibre Geometry are strictly monitored to ensure superior transmission performance. |
|
Ordering Information
|
|
|
|
|
|
|
|
|
|
|
AD-MTA 1 -B 1 -C 1 -D 1 -E 1 -F 1 -G 1 -H 1 -I 1
A 1 ---Sub-unit Diameter: A-0.9mm(12 fibers);B-3.6mm(12-16fibers);C-4.2mm(24-72fibers).
B 1 ---Fiber Type:0-Fibers and copper conductors in cable;1-Two or more fiber types in a cable,Specify fibers by a remark;3-50/125 multi-mode patch-cord grade;5-50/125 multi-mode;6-62.5/125 multi-mode;8-NZDS SM fiber per G.655;9-Standard SM fiber per G.652.
C 1 ---NO.of Fibers:4-72.
D 1 ---Tight Buffer Type:VT-Standard Tight Buffer; HT-HFFR Tight Buffer; YT-Tactical grade;CG-Semi-tight;CD- Semi-tight,dry.
E 1 ---Sub-Unit Sheath Material:V-PVC;H-Halogen-Free,Flame-Retardant;U-Polyurethane;0-No sub-unit(0-12 fiber cable) .
F 1 ---Central Member:E-No central member;F-Aramid Yarn(Dielectric);D- FRP(Dielectric).
G 1 ---Jacket Options:P-Polyethylene;V-PVC;H-Halogen-free,Flame-Retardant;R-Corrugated Steel Armoring;J-Fiberglass Rovings;K-Aramid Yarn;M-Combined Fiberglass Rovings and Aramid Yarn;A-Aluminum Moisture Barrier;U-Polyurethane.
H 1 ---Cable Core Water-Blocking Options:X-No water-blocking;G-Water-blocking gel;D-Dry water-blocking.
I 1 ---Jacket Water-blocking Options (for cables with more than one jacket):X-No water-blocking;G-Water-blocking gel;D-Dry water-blocking. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
